Introduction of 5 Axis CNC Waterjet Machine

In modern stone processing and industrial manufacturing, achieving precision and efficiency across various materials is a common challenge. From complex countertop designs to aerospace-grade precision components, traditional cutting methods often fall short due to low efficiency, heat-induced deformation, and suboptimal cut quality.

The 5 Axis CNC Waterjet Machine is renowned for its cold cutting technology, five-axis dynamic design, and intelligent automation, enabling high-precision operations. This 5 axis CNC waterjet machine combines versatility and cutting-edge performance, making it an indispensable tool in modern manufacturing.

Product Overview of 5 Axis CNC Waterjet Machine

This 5 Axis CNC Waterjet Machine integrates high-pressure waterjet technology with advanced five-axis linkage, enabling precise processing of natural stone, metal, glass, and various composite materials. With a user-friendly CNC control interface and CAD file compatibility, it automatically generates cutting paths, minimizing errors during operation. The cold cutting process ensures materials remain free from heat deformation, while achieving smooth, burr-free edges. Enhanced with features like automatic cutting length measurement, soft limit settings, and an automated sand supply system, this machine reduces manual intervention, optimizes resource use, and lowers production costs.

Features of 5 Axis CNC Waterjet Machine

1. Five-Axis Linkage for Complex Cutting Needs

   • Supports five-axis dynamic operation for multi-angle and three-dimensional cutting, ideal for intricate geometric shapes like curved countertops and decorative panels.

   • Equipped with high-precision servo systems, achieving cutting accuracy of ≤0.1mm, making it a standout in water jet CNC technology.

2. High-Pressure Waterjet Technology for Versatile Materials

   • Combines high-pressure water with abrasive materials to enhance cutting power, effectively handling granite, marble, sintered stones, metals, and glass.

   • The cold cutting process eliminates heat effects, preserving material integrity, making it ideal for water jetting and hydro cutting applications.

3. Smart Control with Automated Features

   • International-Level Waterjet Software: Enables five-axis dynamic cutting with a user-friendly interface to reduce operational complexity and errors.

   • Synchronized Drawing and Programming: Automatically generates CAD designs, supports photography-based graphics creation, and synchronizes NC programming for seamless workflow.

   • Automatic Cutting Length Measurement: Calculates the cutting length for each component, optimizing resource usage and simplifying cost estimation.

4. User-Friendly Interface and Safety Features

   • Interactive interface synchronizes machining programs with graphical simulations, reducing machining errors.

   • X and Y axis soft limit settings prevent cutting head overtravel, ensuring system stability and minimizing risks, solidifying its role as a reliable water pressure cutting machine.

5. Efficient Auxiliary Systems

   • Features an automated sand supply system with a 150kg storage capacity, controlling sand usage to lower labor costs and enhance efficiency.

   • A high-power hydraulic station supports a load capacity of up to 600kg, delivering robust performance for demanding cutting tasks, establishing its reputation as a high pressure cutter.

6. Eco-Friendly and Cost-Efficient

   • Produces no dust or smoke during cutting, meeting environmental standards.

   • Water recycling and automated leveling functions further reduce operational costs while ensuring sustainable production.

Technical parameters of 5 Axis CNC Waterjet Machine

Applications of 5 Axis CNC Waterjet Machine

1. Architectural Stone Processing

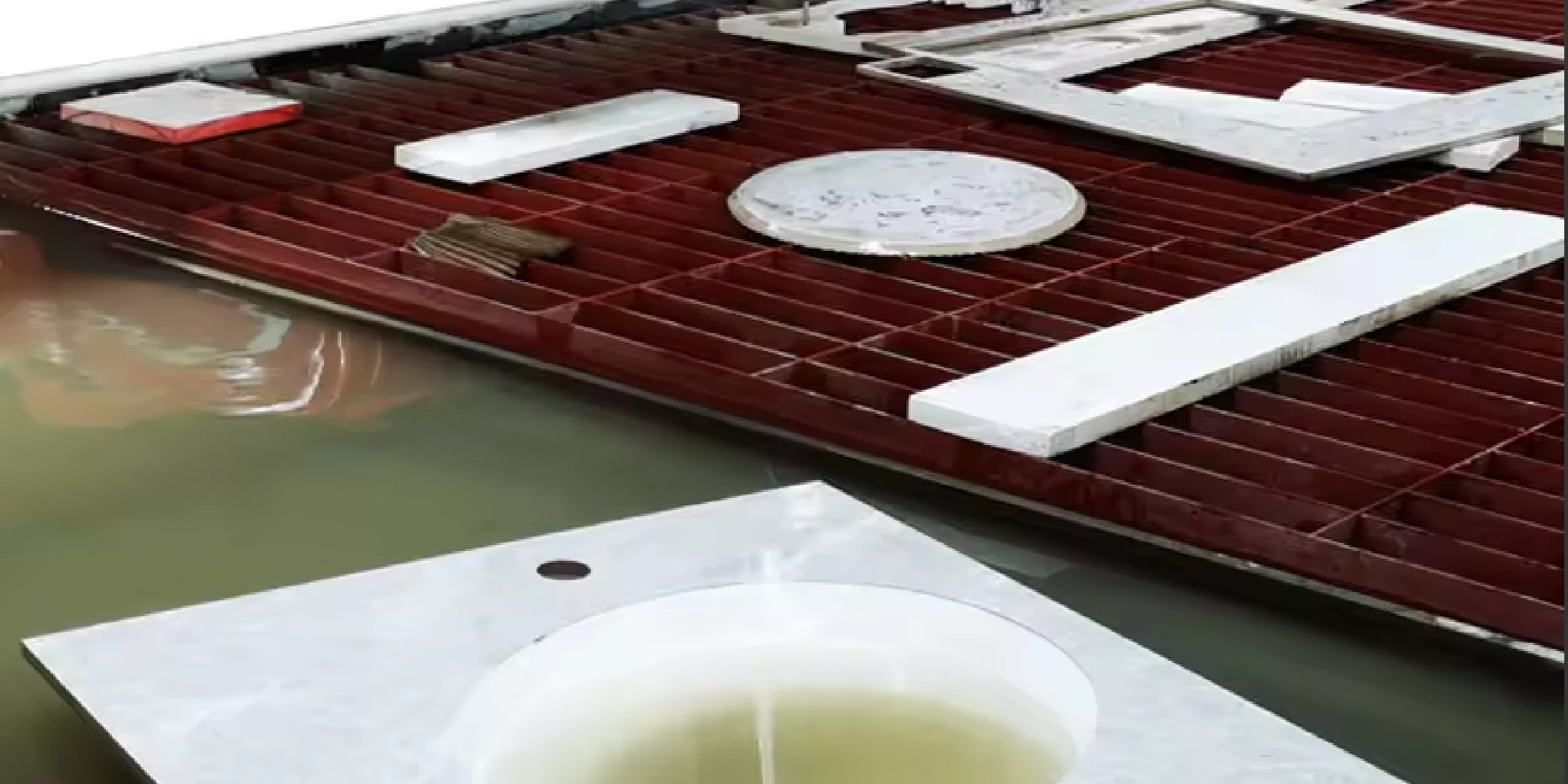

   • Efficiently cuts granite, marble, sintered stones, and luxury stones for wall tiles, floor tiles, backsplashes, and countertops, positioning itself as an ideal tile cutting machine.

2. Metal Processing

   • Precisely cuts steel, aluminum, and other metal sheets, catering to industries like aerospace, automotive, and heavy machinery as a reliable steel cutting machine.

3. Non-Metallic Material Cutting

   • Handles glass, ceramics, and plastics, making it indispensable in the production of electronics, home decor, and high-end custom products, showcasing its cold cutting capability.

4. Composite and Specialized Material Cutting

   • Effectively processes composite materials and ballistic-resistant materials for defense and industrial applications, leveraging flow waterjet technology.

5. Precision Component Manufacturing

   • Widely used in aerospace and automotive sectors for high-precision machining of complex components, cementing its status as a premier automatic cutting machine.

Customer Case Studies of 5 Axis CNC Waterjet Machine

1. Case 1: High-End Decorative Material Manufacturer in Europe

   • Leveraged the machine for luxury stone backsplashes, utilizing intelligent measurement and cold cutting technology to reduce production time and enhance quality.

2. Case 2: Aerospace Component Supplier in North America

   • Used the waterjet system to cut titanium alloy components for aerospace applications, achieving ±0.1mm accuracy and avoiding heat-induced material degradation.

3. Case 3: Metal Processing Enterprise in Asia

   • Deployed the machine for steel and aluminum processing, benefiting from its five-axis linkage and automated sand delivery system to lower costs and increase efficiency.

Details of 5 Axis CNC Waterjet Machine

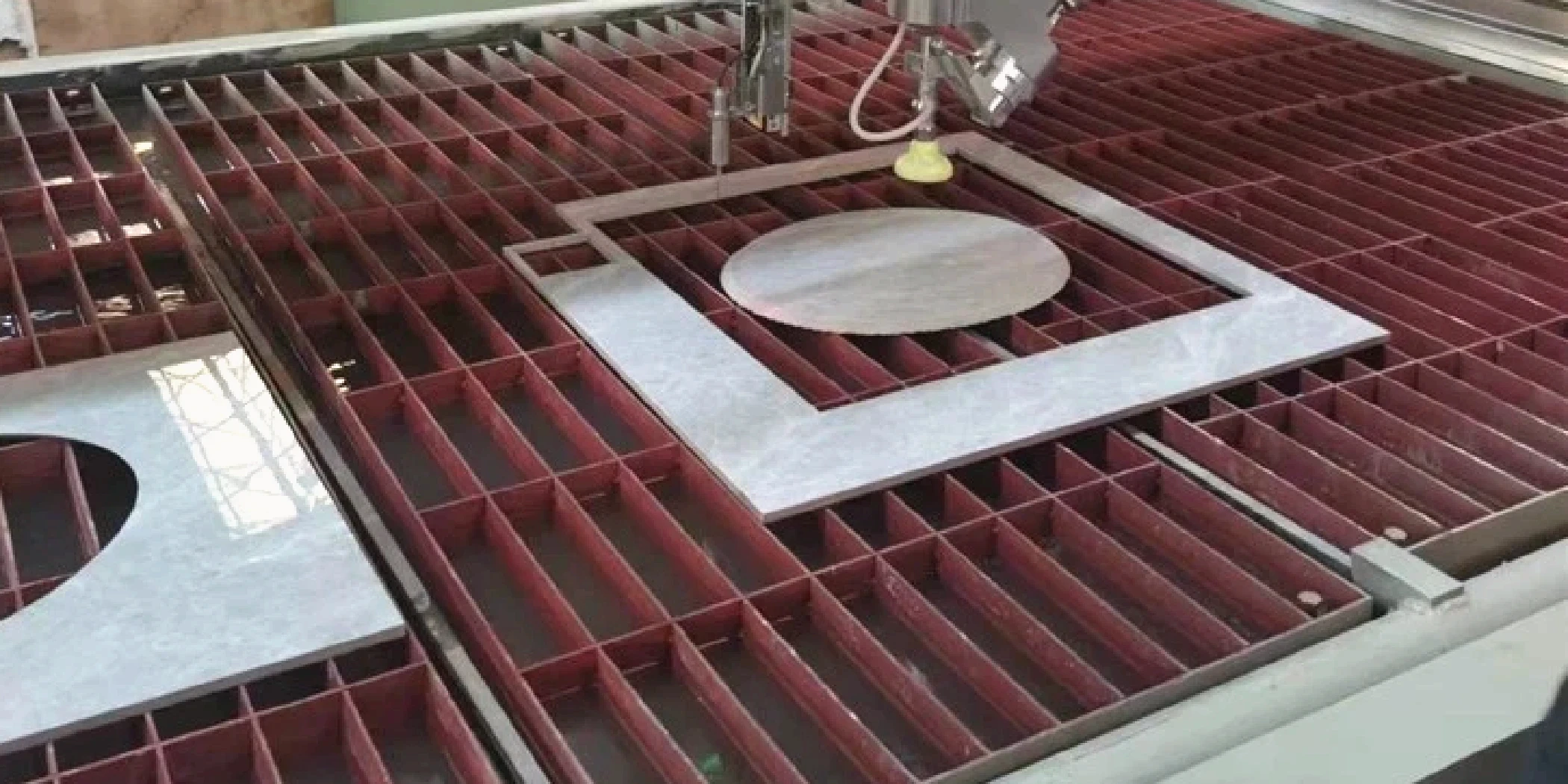

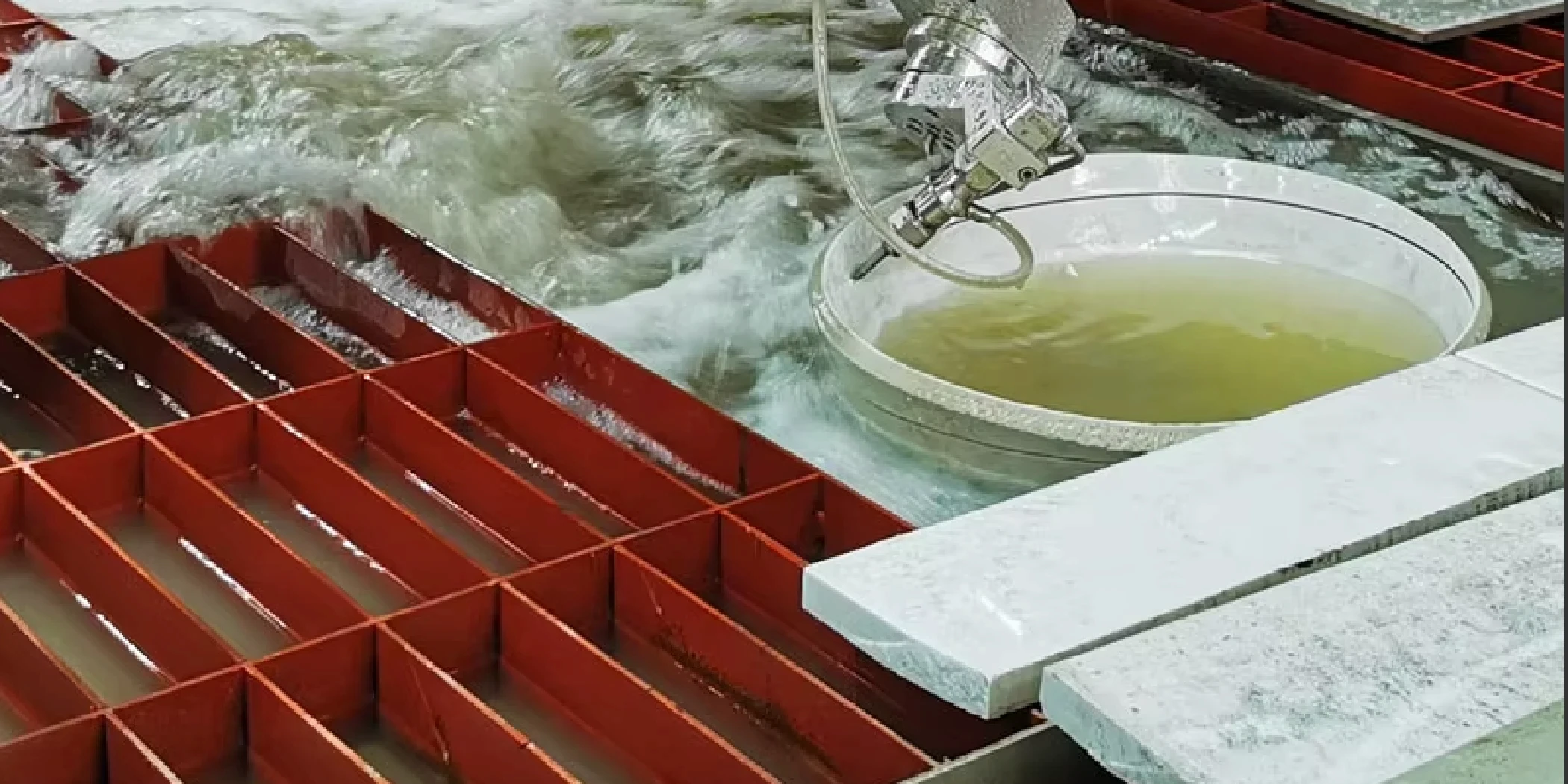

This machine focuses the high-pressure water flow generated by the water pump into a high-speed jet through the nozzle, and at the same time adds the abrasive mixture to it, so that the jet will instantly impact the surface of the stone to be cut with the abrasive, so as to realize the cutting of the stone.

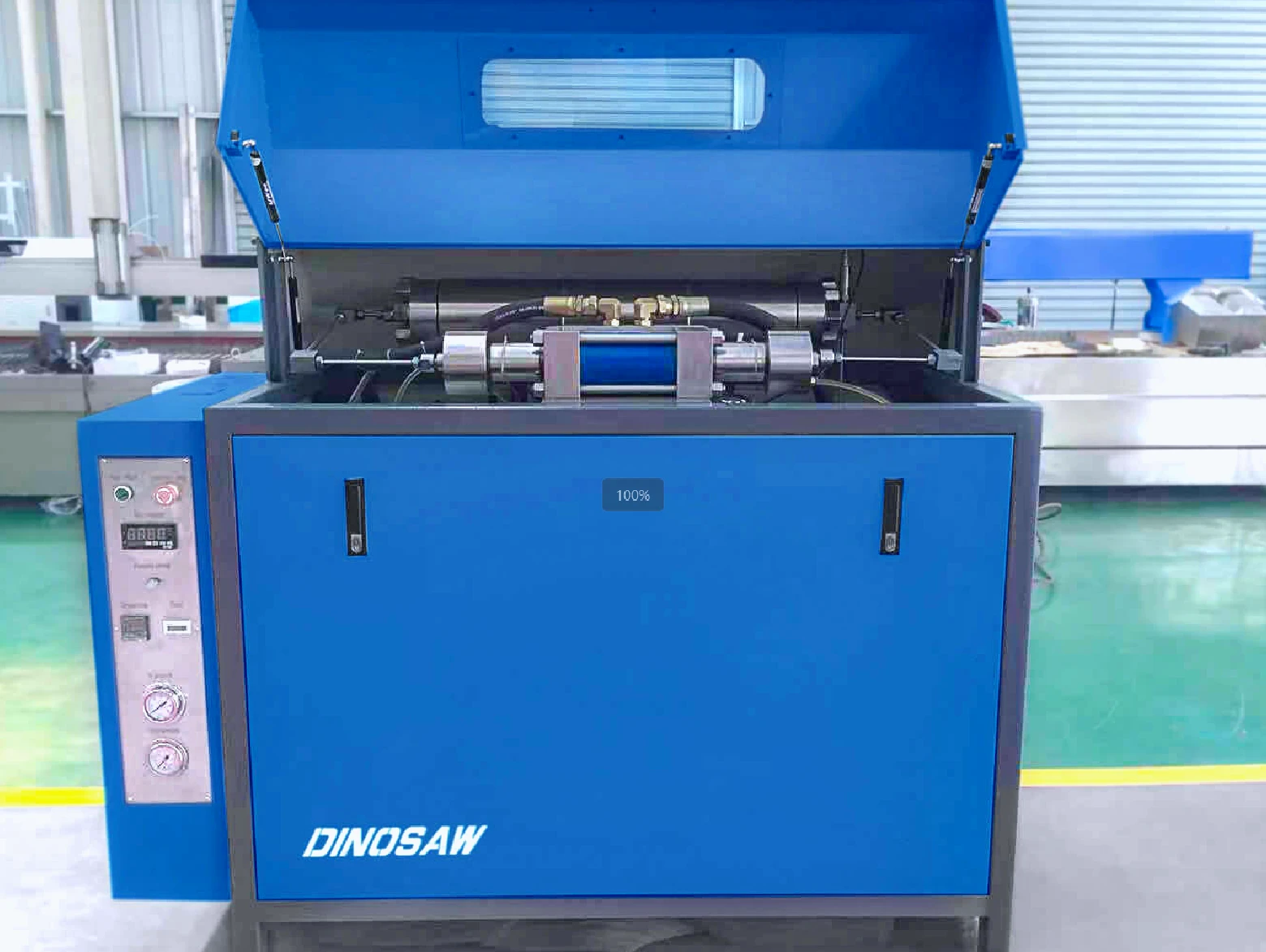

Dinosaw 5-axis CNC waterjet Cutting Machine WZSD-4020 supercharging system has a simple operation interface and adopts brand electrical switches. The supercharging system can improve the engine's performance, fuel economy, altitude adaptability, power adjustment range and response speed and other advantages.

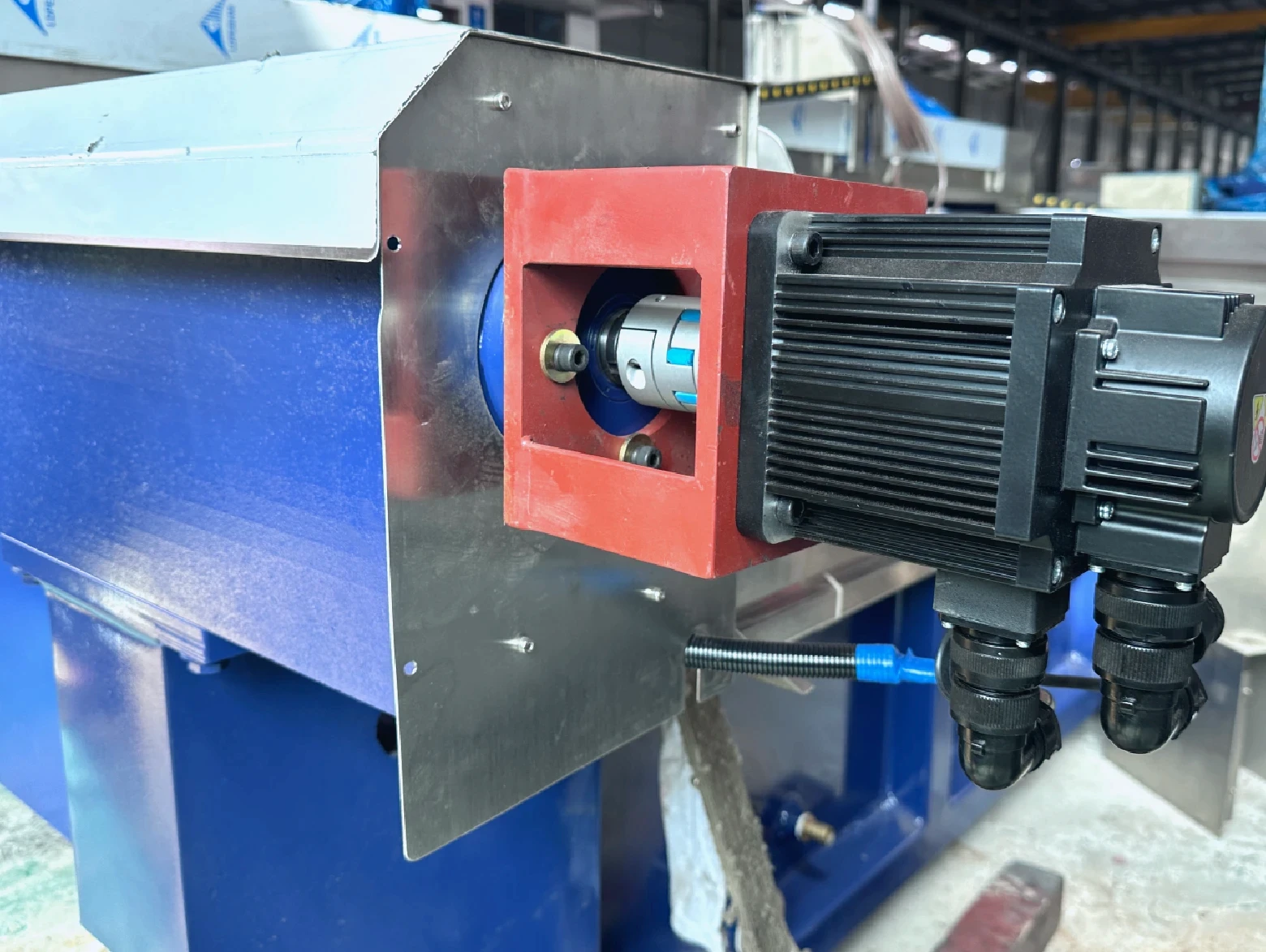

It is the sand-feeding for water jet machine. It will transfer the sand to bucket automatically. The operation is easy. It can improve the automation degree of the equipment and reduce the labor intensity of the operator. capacity 100KLto ensure continuous cutting amount of sand required during 200 to 300 minutes.
