Diamond Wire Saw Cutting Machine Overview

Can’t Wait to Boost Your Cutting Efficiency?

[🔽 View more wire saw machine models]

[💬 Get Instant Quote]

[🔧View Diamond Tools for wire saw machine]

Keep Scrolling to Discover:

✅The cutting principle of the diamond wire saw machine, how it is superior to other cutting methods

✅Technical parameters and core advantages of DINOSAW wire sawing machine

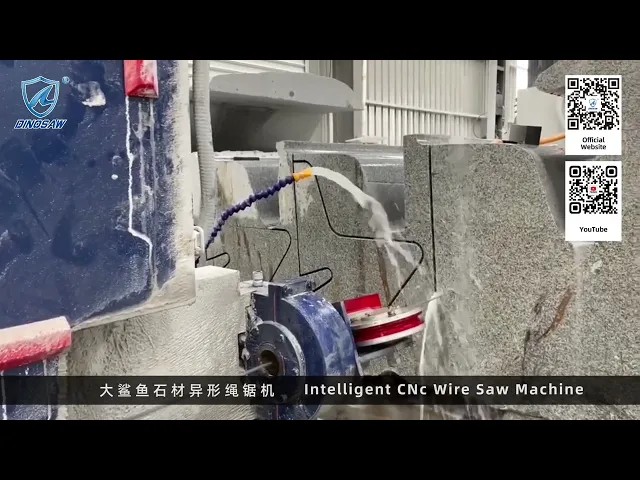

✅Real-life examples of a wire saw machine cutting precisely and improving production efficiency

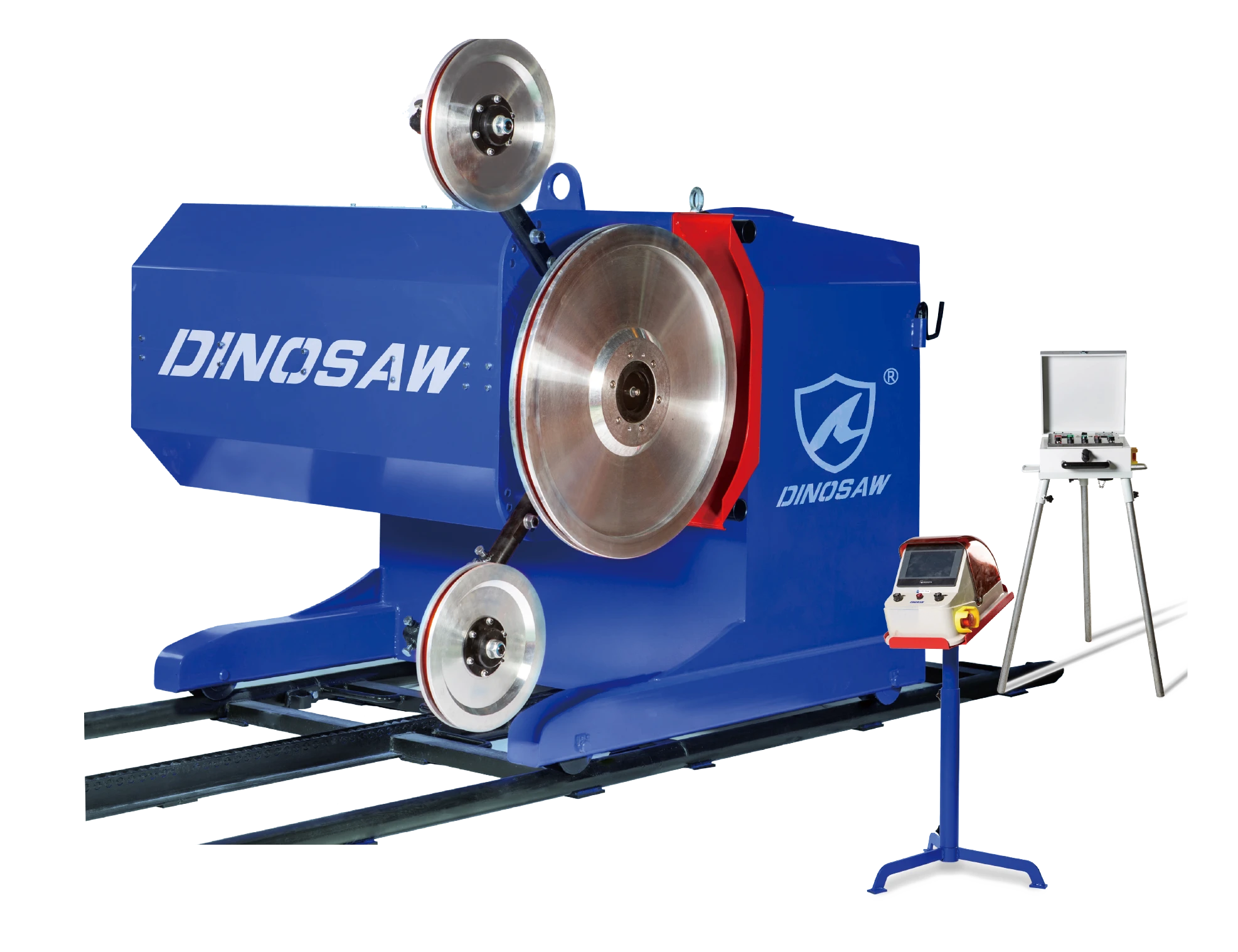

What is a Diamond Wire Saw Machine?

A diamond wire saw uses a diamond-coated wire for cutting hard materials like stone, concrete, or metal. It operates via a motor-driven wire loop guided by pulleys.

How does a Diamond Wire Saw work?

Drive & Grinding

The diamond wire rotates at high speed around the cutting surface (usually forming a closed ring) driven by a hydraulic motor, and is gradually cut into the material by the grinding action of the diamond beads.

Cooling & Chip Evacuation

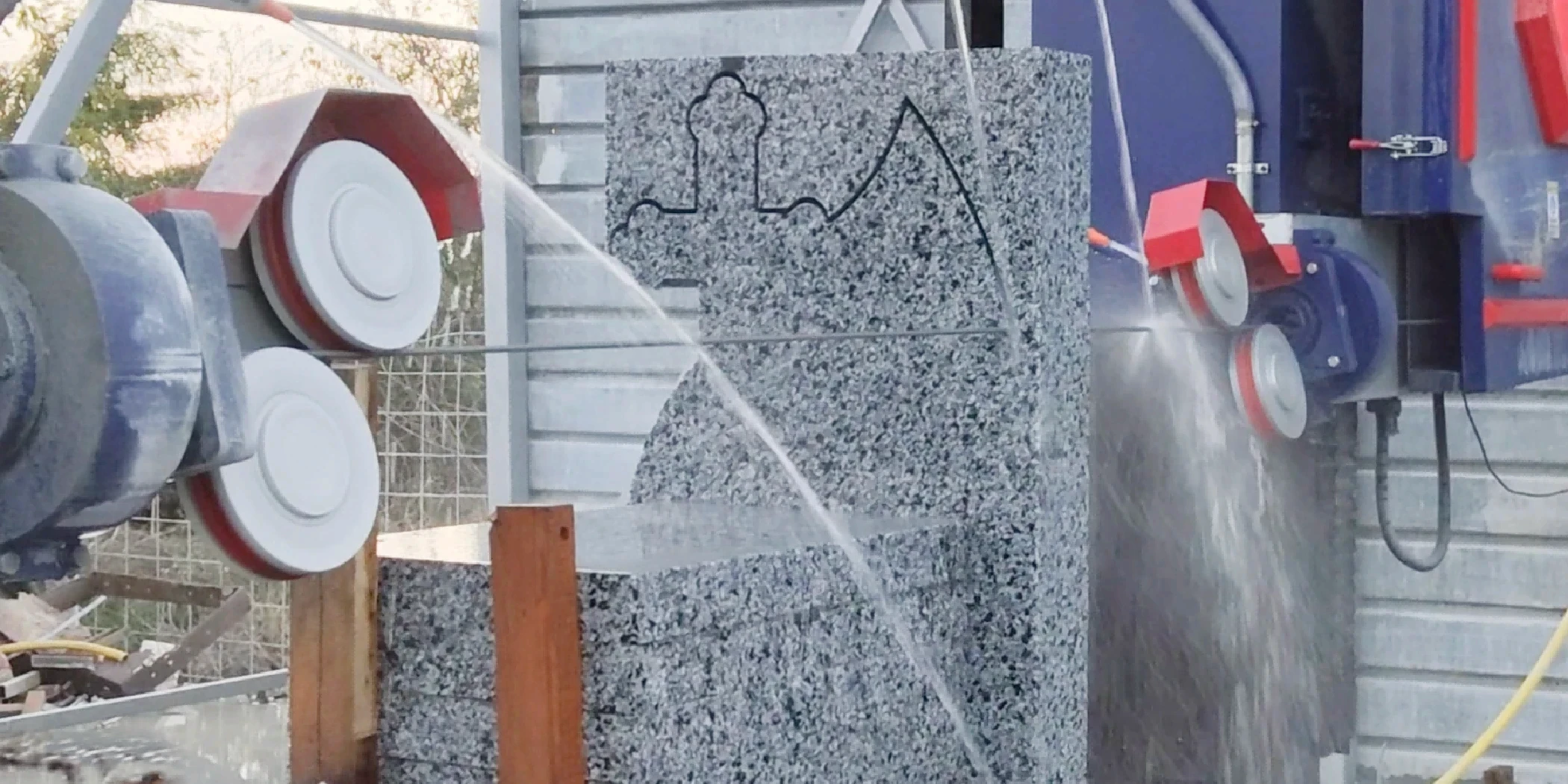

Cooling water is continuously injected into the cutting area to lower the temperature and flush out debris to avoid thermal deformation of the material and tool wear

Multi-directional cutting

The equipment can flexibly adjust the cutting direction (horizontal, vertical, oblique), which is suitable for the cutting needs of complex geometries

Key Components

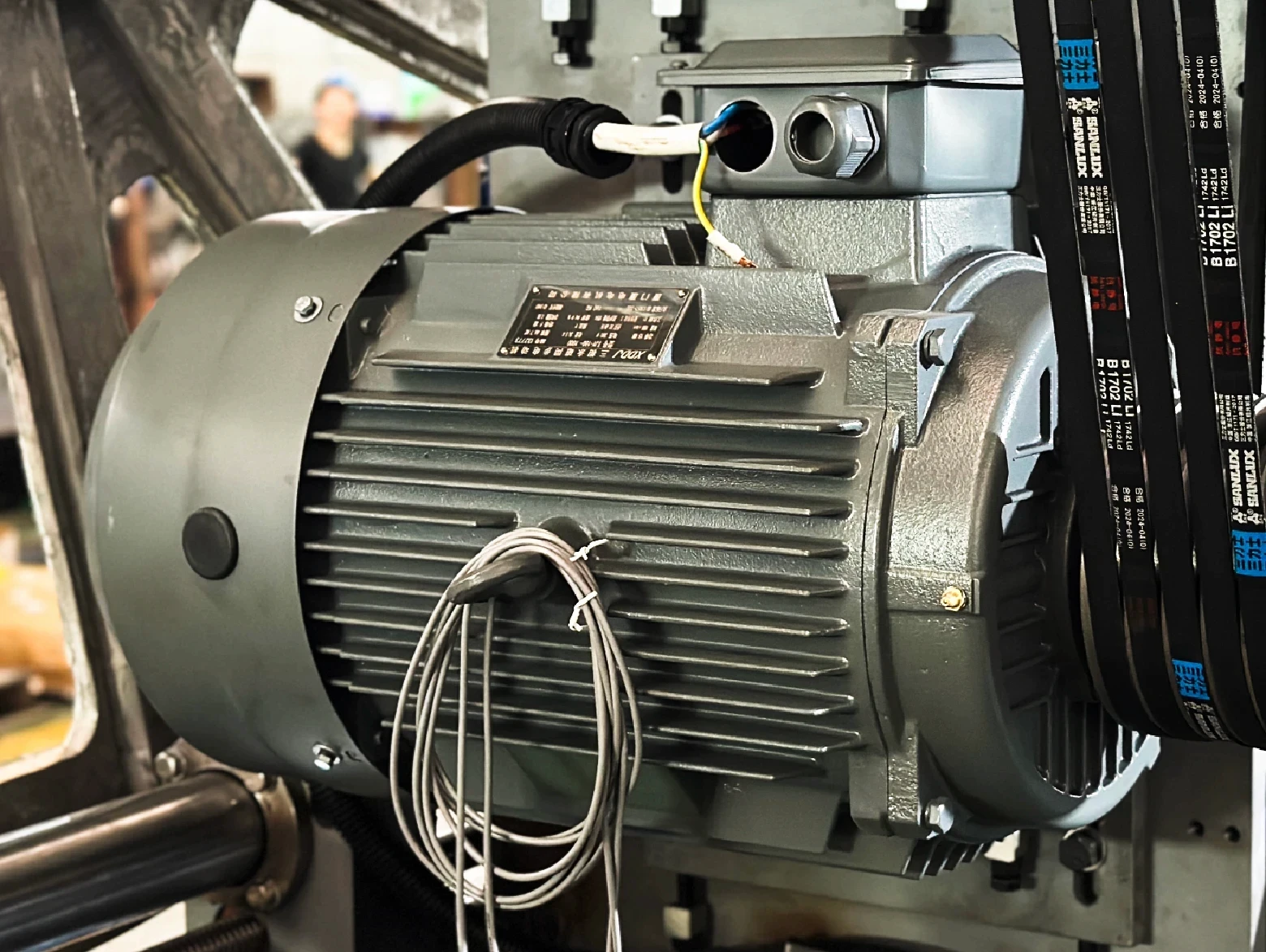

Main motor

Drive the diamond wire to rotate at high speed to complete the cutting action.

flywheel

Connected with the main motor, drives the movement of the wire saw through high-speed rotation.

Diamond Wire

Steel rope embedded with synthetic diamonds .

CNC Control System

Adjust speed, tension, and cutting angle digitally.

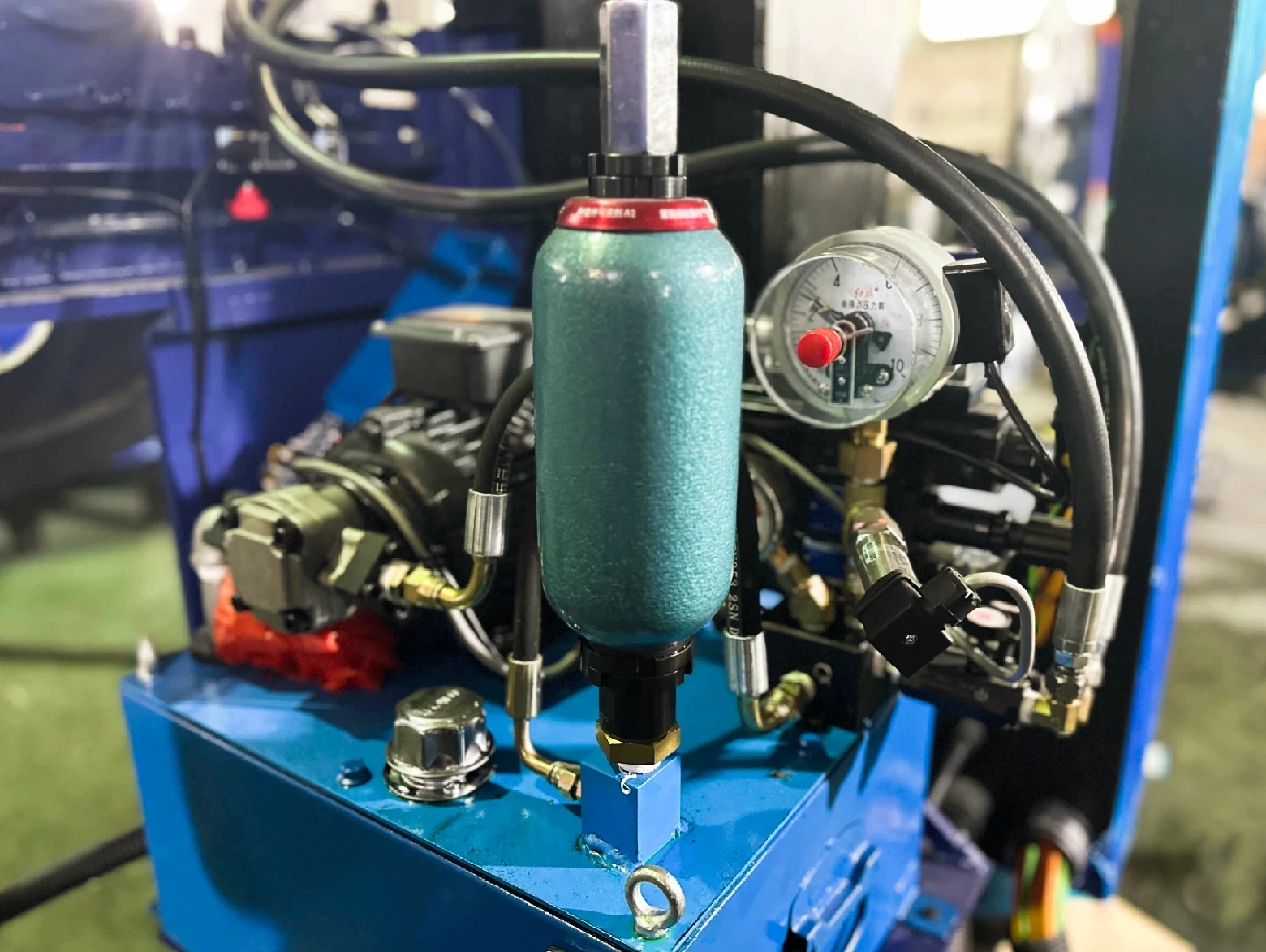

Tensioning device

By hydraulically adjusting the tension of the wire, the tension is constant during cutting.

Mobile platforms

Supporting the sawing machine and realizing the feed, the moving accuracy directly affects the flatness of the cutting sheet

Applications

Stone Industry

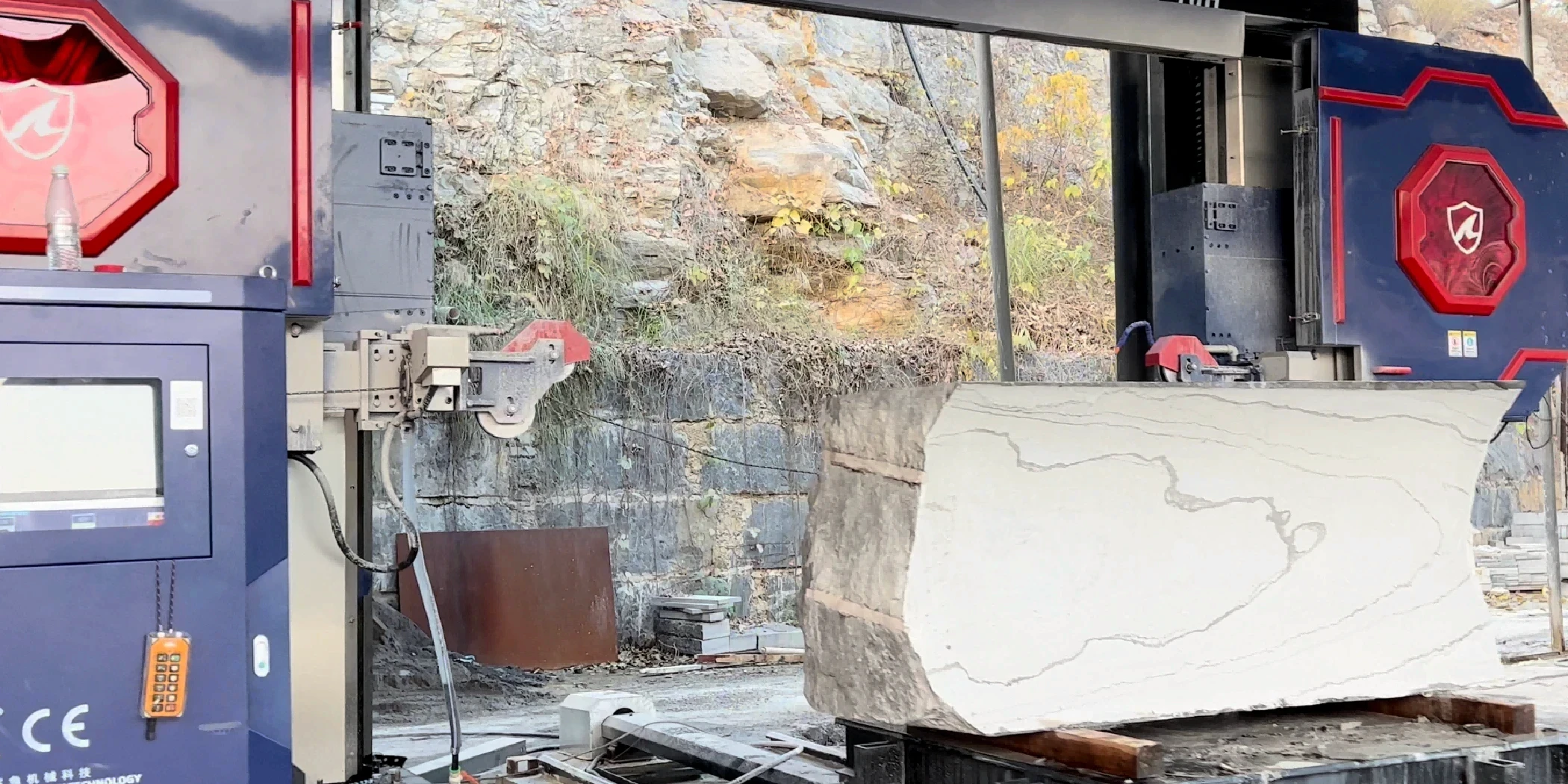

Quarrying and Cutting marble, granite, and limestone blocks.

Construction

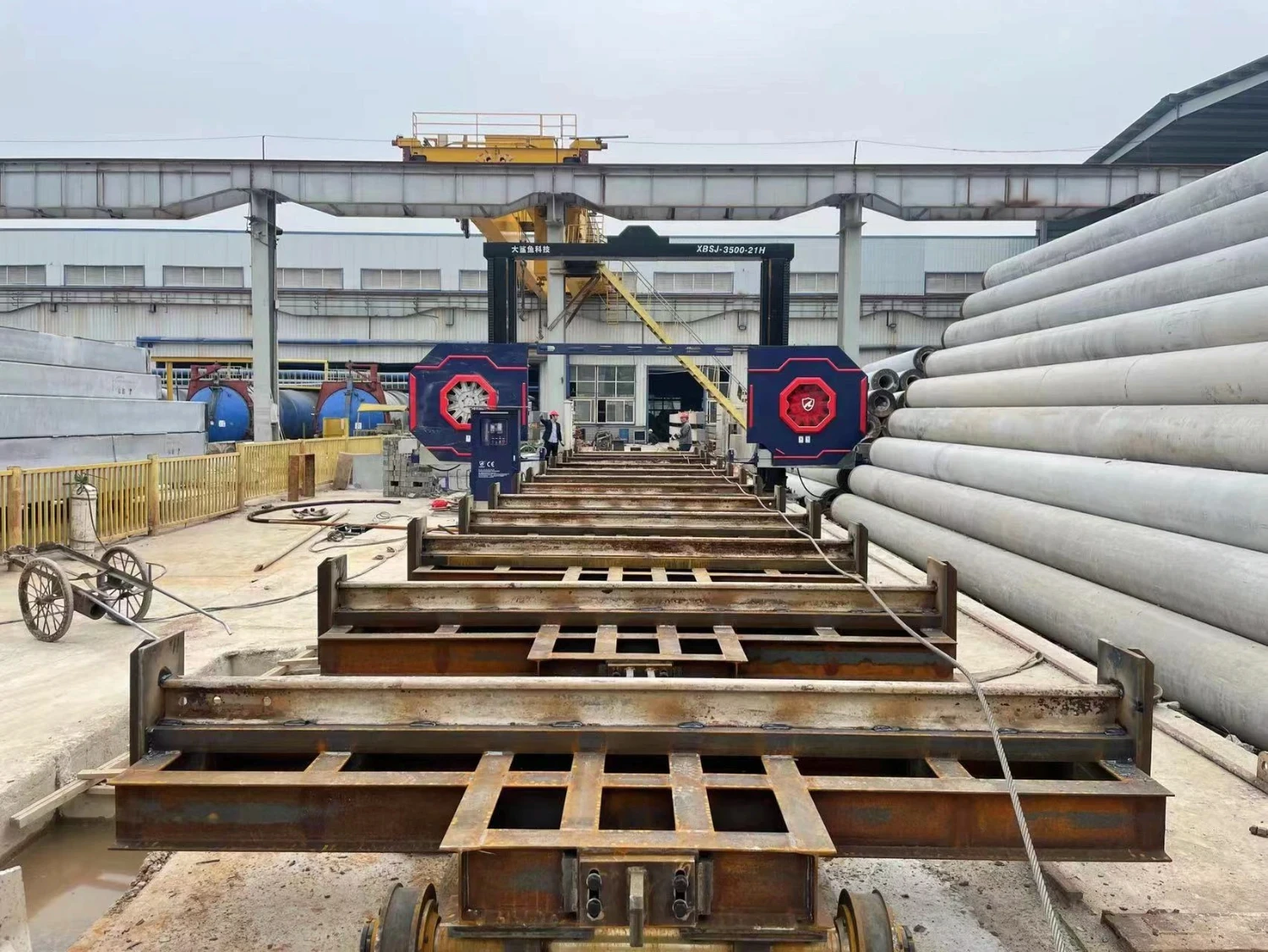

Cutting reinforced concrete pillars, bridges, and tunnels.

Metalworking

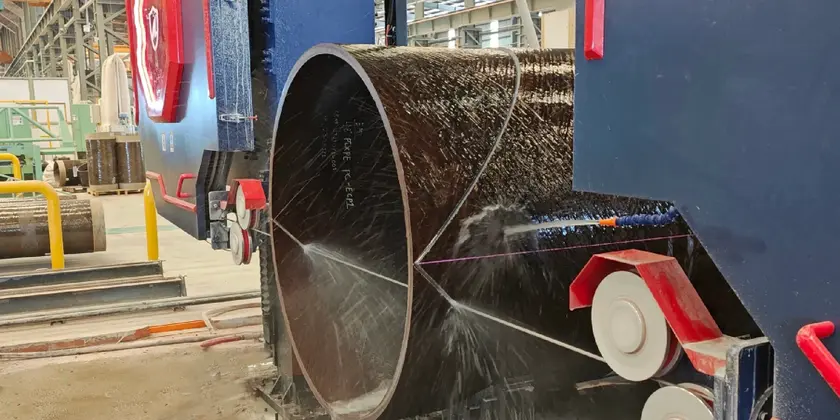

Dismantling steel structures, shipbreaking.

Specialized Uses

Underwater cutting,silicon crystal slicing.

Why choose wire saw cutting: comparison of various cutting methods

Wire Saw Cutting

Advantages

Capable of cutting brittle/hard materials of any thickness (e.g., massive concrete, rock, thick metals) using static cold cutting technology to avoid thermal damage

produces smooth surfaces without secondary processing

supports multi-directional (horizontal, vertical, curved) and complex structural operations

highly eco-friendly (low noise, controllable dust), especially suitable for underwater, flammable environments, and protective demolition.

Applications

Bridge/building demolition, mining, irregular stone processing, deep-buried or underwater structure cutting.

Limitations

Low efficiency for thin plates (<50mm) or non-brittle materials (e.g., plastics, wood)

large equipment size, cost-ineffective for small projects.

Diamond Blade Cutting

Advantages

Fast cutting speed (concrete: 2-3 m/min), portable and low-cost equipment

ideal for small-to-medium straight or shallow curved cuts with flexible operation.

Applications

Concrete grooving at construction sites, straight cutting of stone slabs, road repair, and shallow-depth tasks.

Limitations

Cutting depth limited by blade diameter (≤600mm), unsuitable for massive or irregular structures

Friction-induced heat may cause micro-cracks (requires water cooling)

High noise (90-110 dB), dust/slurry pollution requiring additional treatment.

Waterjet Cutting

Advantages

No HAZ, ideal for sensitive materials (titanium alloys, composites)

high precision (±0.1mm), pollution-free.

Applications

Aerospace composites, food-grade materials, artistic glass, and other cold-cutting requirements.

Limitations

Extremely slow speed (20mm metal: ~30mm/min)

high consumable costs (abrasives, high-pressure pumps)

bulky equipment with limited mobility.

Laser Cutting

Advantages

Ultra-high precision (±0.03mm), rapid cutting speed (thin metal plates: up to 600 cm/min), minimal heat-affected zone (HAZ), ideal for intricate pattern processing.

Applications

High-precision cutting of thin metal plates (carbon steel, stainless steel) and non-metals (acrylic, fabric); precision component manufacturing.

Limitations

Efficiency plummets for thick plates (>20mm)

Incompatible with high-reflectivity materials (copper, aluminum)

High equipment/maintenance costs and energy consumption.

Flame Cutting

Advantages

Low equipment cost, capable of cutting thick carbon steel plates (≤1.2m), low technical barrier.

Applications

Rough processing or blanking of carbon steel thick plates in shipbuilding and steel structures.

Limitations

Severe thermal deformation leads to poor precision (±1-2mm)

Limited to carbon steel

Generates heavy smoke/slag with poor eco-friendliness

Slow cutting speed (20mm carbon steel: ~450mm/min).

Plasma Cutting

Advantages

Faster than flame cutting, suitable for conductive metals (stainless steel, aluminum), efficient for medium-thick plates (≤50mm).

Applications

Medium-thick plate blanking in metal workshops

Stainless steel/aluminum alloy cutting.

Limitations

Sloped cut edges (require secondary grinding), low precision (±0.5-1mm)

Frequent consumable (electrode, nozzle) replacements raise operational costs.

Best CNC Wire Saw Machine for sale

For 25+ years, DINOSAW has dominated the diamond wire cutting industry, delivering best-in-class CNC wire saw machines trusted by 2,000+ clients across 30 countries—from boutique stone workshops to mining leaders.

Efficient Cutting Capability

Cutting Speed

1.5-2.0 ㎡/h, increasing production efficiency by up to 50%.

Precision

Cutting precision reaches 1mm, ensuring precise and error-free processing results.

Shaping Cutting

cutting angle range from 0° to 360°, suitable for various cutting needs such as straight, curve, and shaping.

Intelligent Operation

No CAD and Programming Requirements

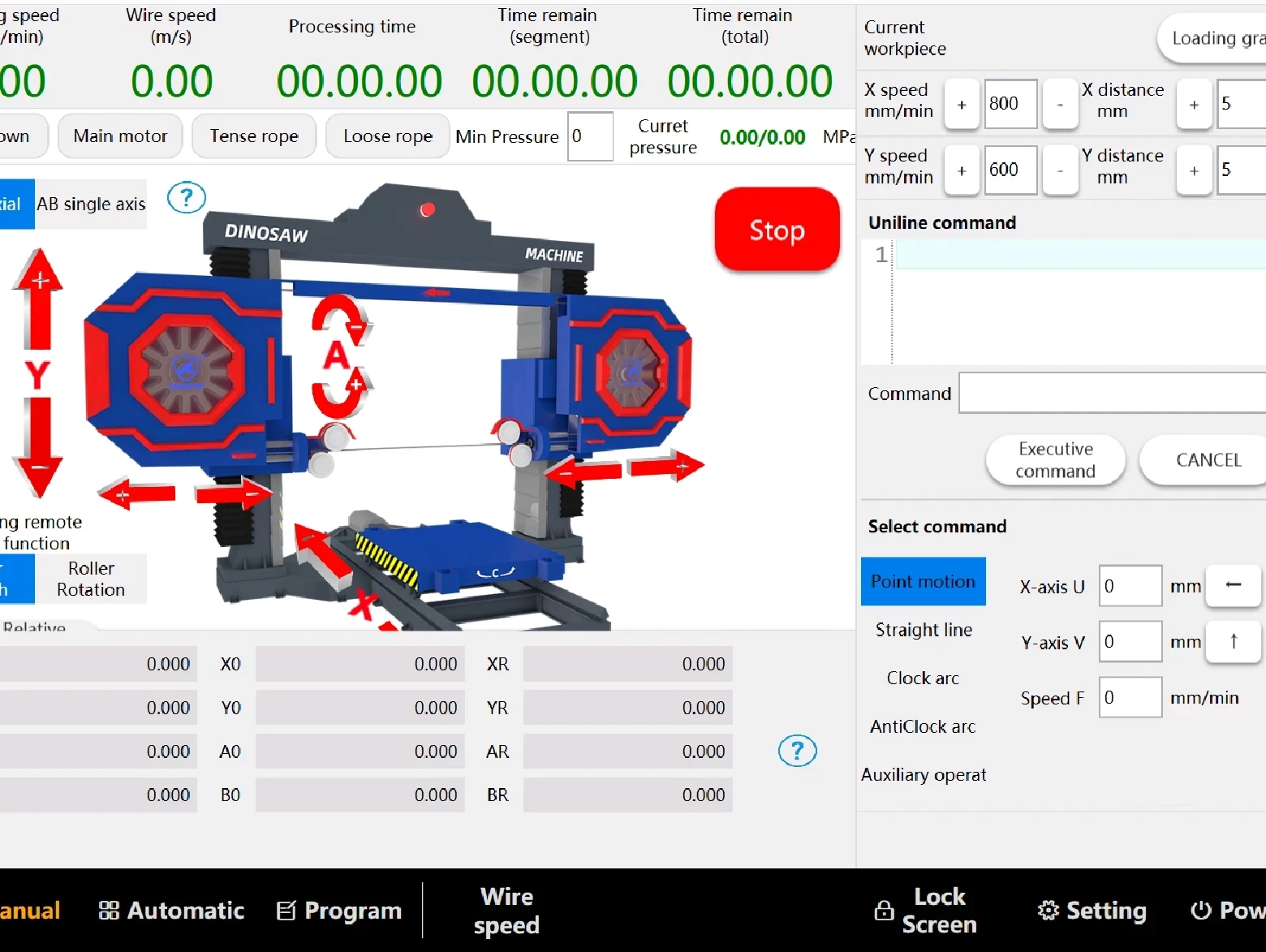

The operating system is designed with a user-friendly interface, eliminating the need for cumbersome CAD programming, making it easy to get started.

Built-in 4G and OTA System

Supports remote system upgrades, ensuring the equipment always maintains the latest software and features, enhancing the user experience.

Easy Operation

With a simple operation interface, users can complete setup within 5 minutes and quickly start production.

Strong Material Adaptability

Applicable Materials

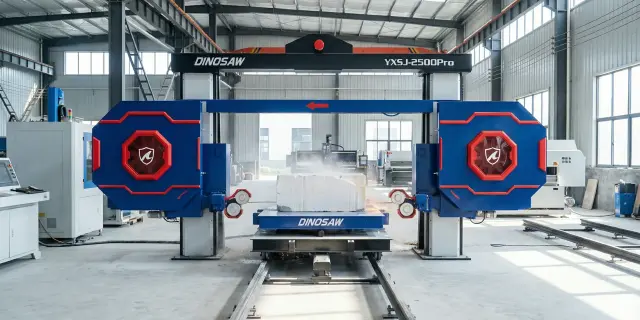

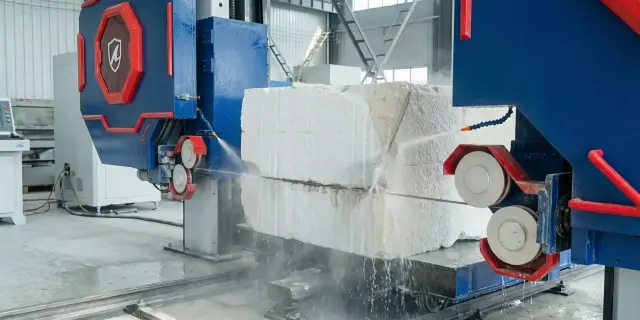

The equipment can be used to cut various types of materials, including marble, granite, quartz stone, ceramic, and other high-hardness, strictly cutting-requirement stones.

Applicable Environments

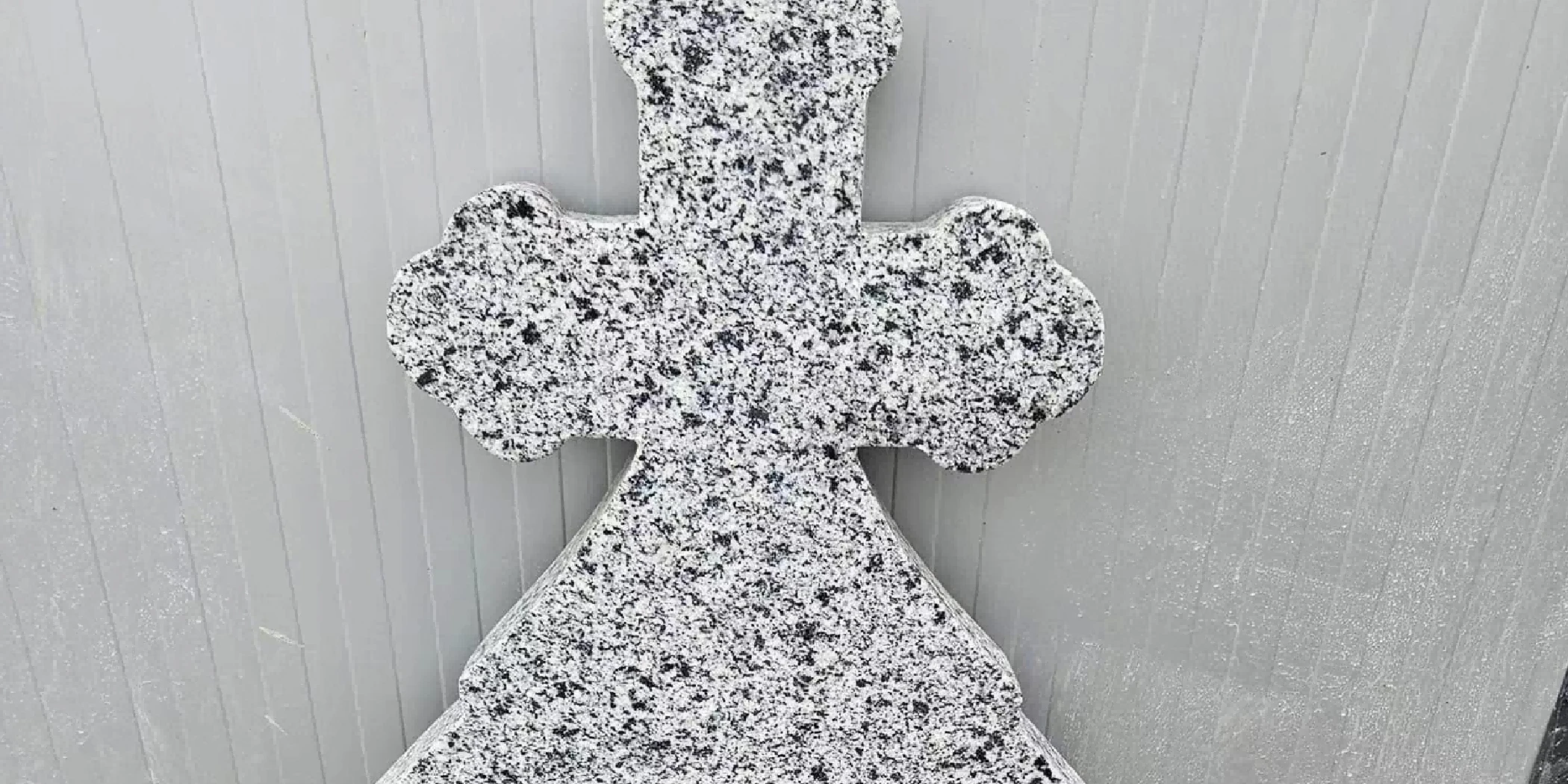

Widely used in mining, stone processing factories, tombstone cutting production, construction industry, and more.

High Flexibility

Supports multi-angle cutting, the equipment's cutting head can freely rotate and tilt, adapting to various complex shape cutting tasks.

Highly adjustable operating system and configuration, allowing the equipment to precisely adjust cutting angles, pressure, and speed, thereby improving cutting efficiency and quality.

Why Choose DINOSAW for your machine?

✅ 70+ Patents, Cutting-Edge Authority

• Industry-Leading R&D: 20+ years of innovation fueled by 70+ proprietary patents in diamond wire technology.

• AI-Optimized Performance: Patented multi-axis control systems and adaptive pressure/speed algorithms ensure maximum blade efficiency and cut quality.

✅ Global Compliance, Zero-Compromise Quality

• Certified Excellence: DINOSAW machines meet the world’s strictest standards, including CE (EU), CCC (China), and ISO 9001/45001 certifications—guaranteeing safety, reliability, and environmental compliance.

• Risk-Free Investment: From semiconductor labs to mining sites, our certified technology ensures consistent results under any regulatory framework.

✅ Unrivaled Cross-Industry Expertise

• From Stone to Semiconductors: Master marble quarries, precision-cut aerospace alloys, or delicate semiconductor wafers—all with one machine.

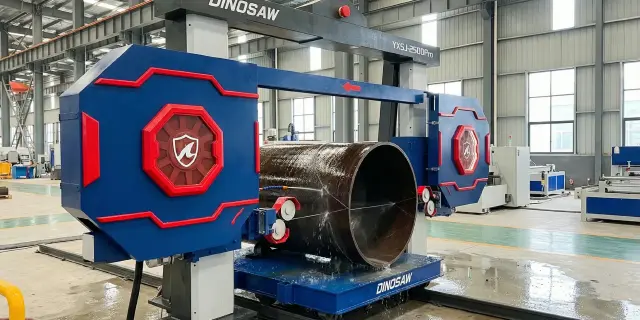

• Material Agnostic: Proven success in construction (steel/concrete), metal fabrication, composite materials, and advanced electronics.

✅ Global Support, Localized Service

• 24/7 Worldwide Coverage: On-site technicians, remote diagnostics via 4G/OTA, and multilingual online support—responsive in any timezone.

• Your Success, Guaranteed: 1-year warranty + lifetime software upgrades to protect your investment.

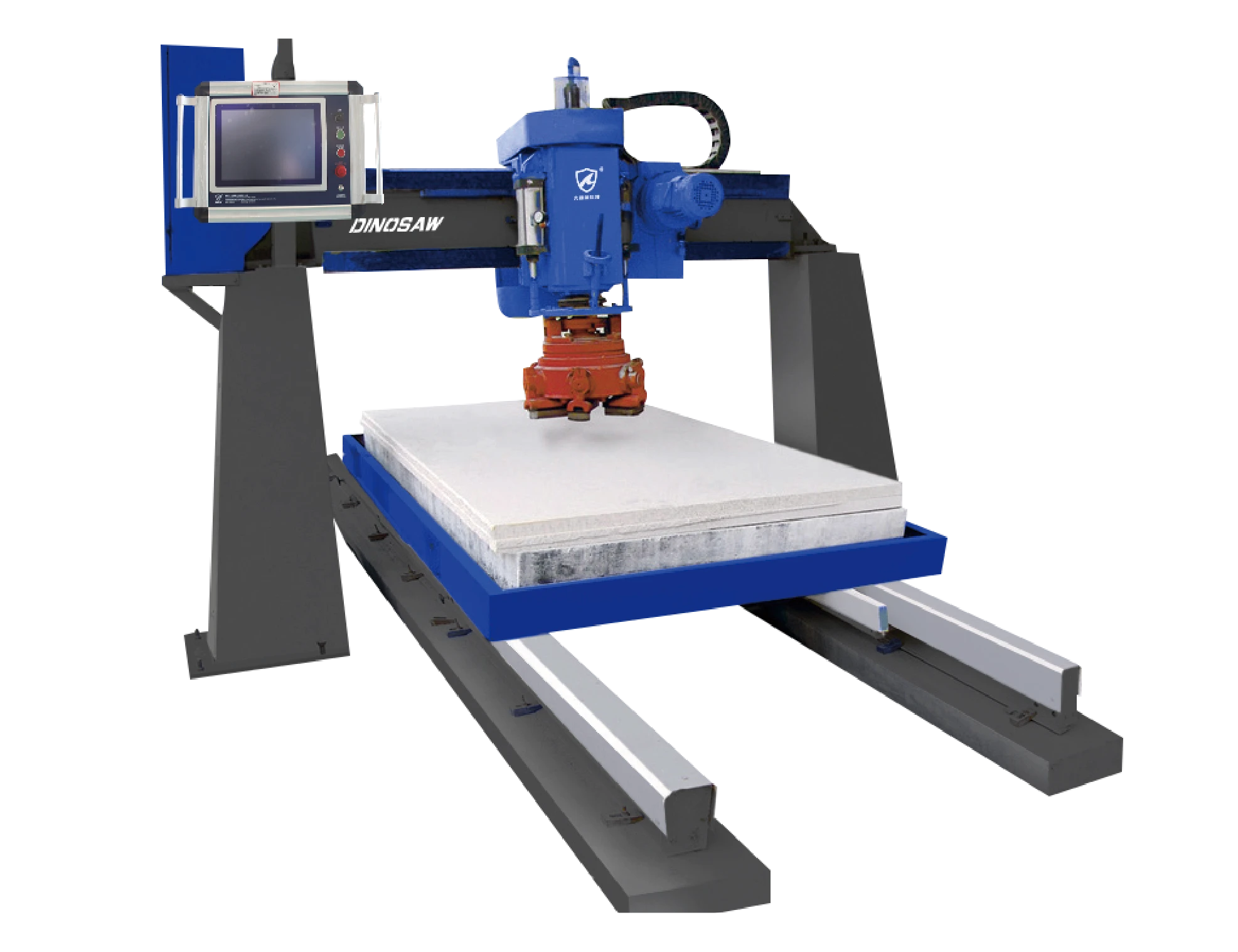

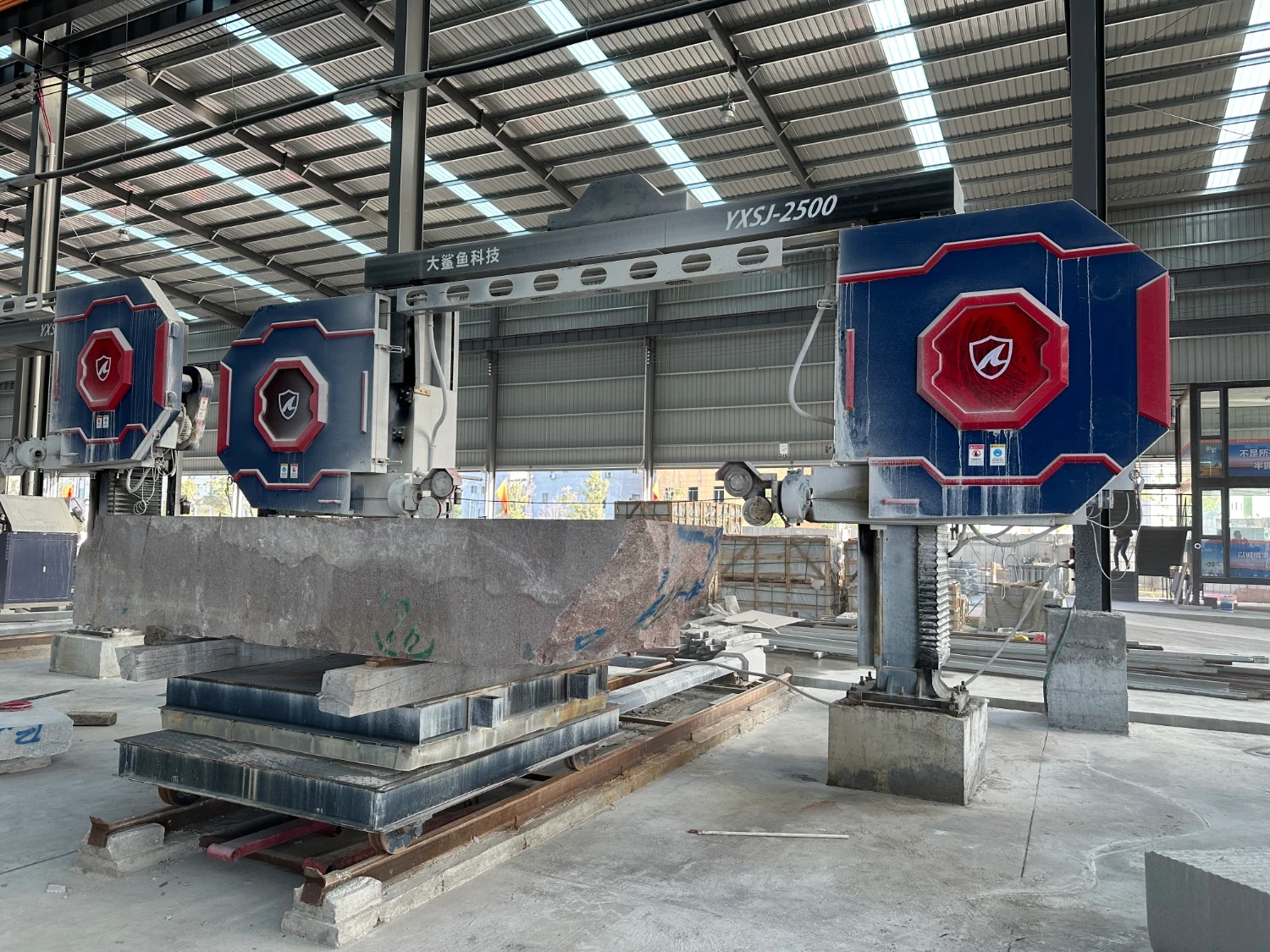

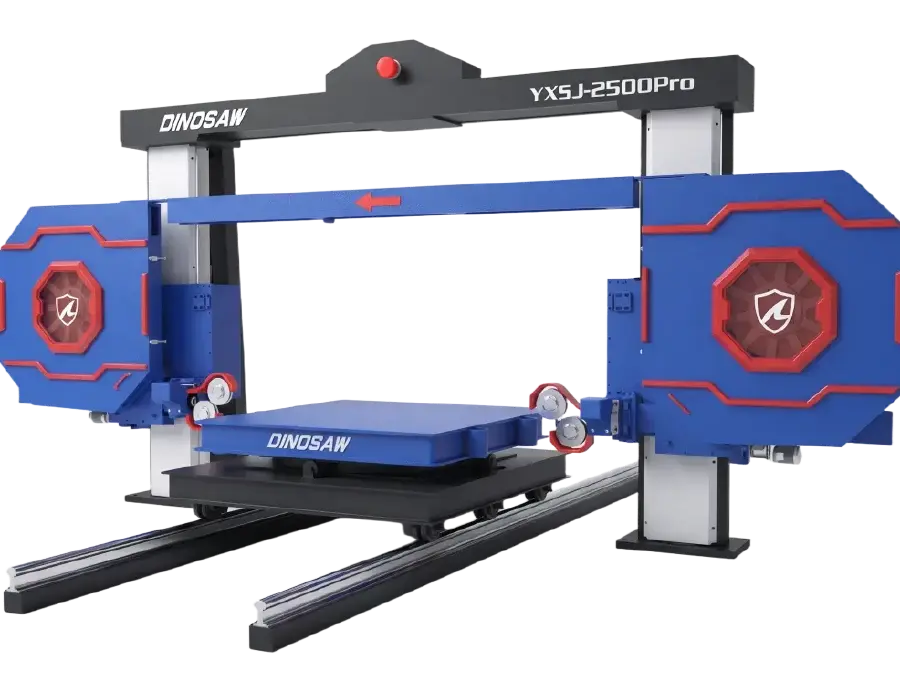

Technical Specifications of DINOSAW wire saw YXSJ-pro

Cutting Speed: 1.5-2.0 ㎡/h (for marble cutting)

Cutting Precision: Within 1mm

Worktable Adjustment Range: No adjustment in the vertical direction, supports horizontal adjustment.

Motor Power: Customized according to cutting requirements

Support System: Built-in 4G communication, supports OTA remote upgrades

Operation Interface: Simple touch screen, supports connection with APP and system

Customer Cases of DINOSAW CNC wire saw machine

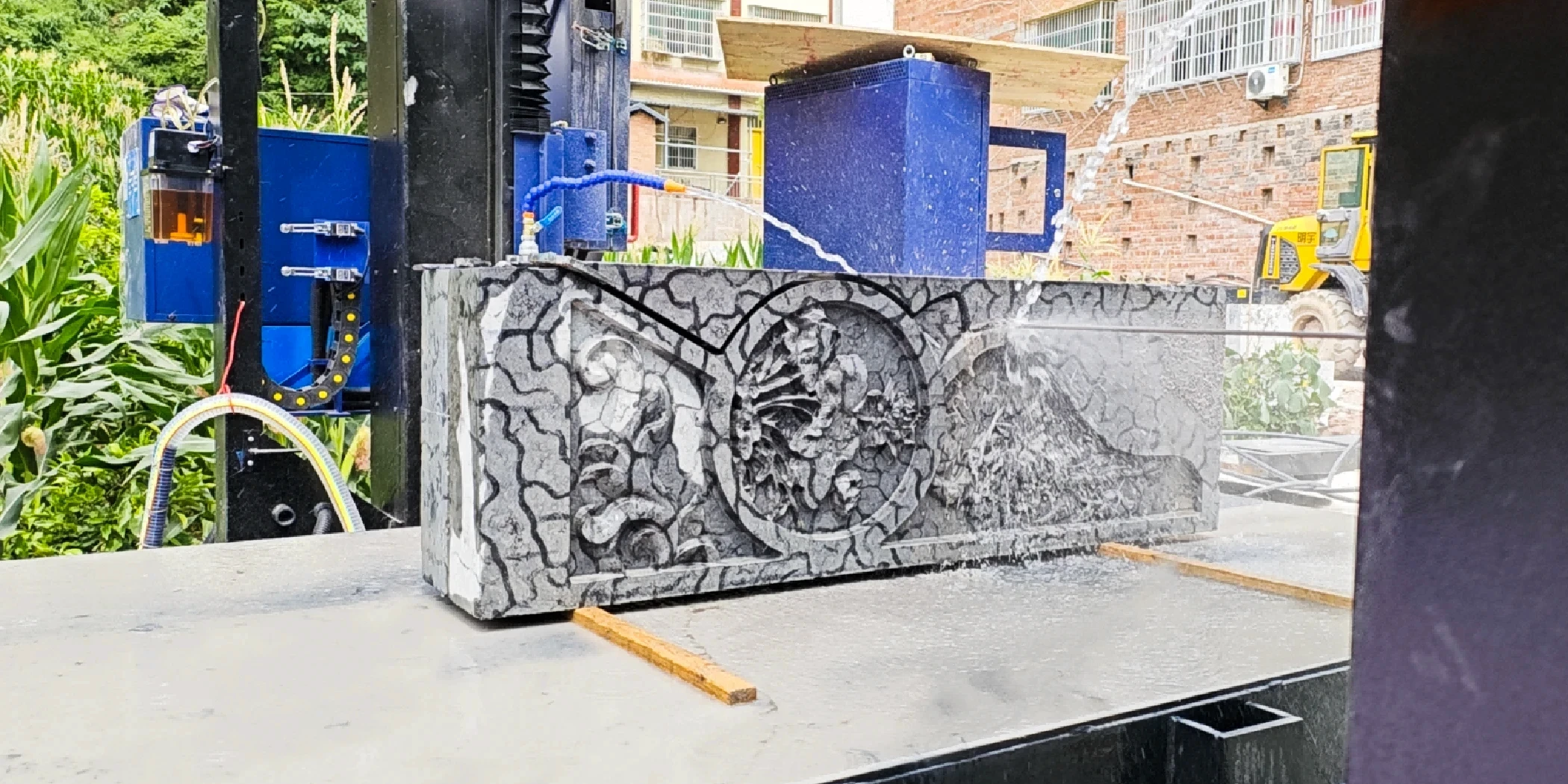

In many regions around the world, the Intelligent CNC Diamond Wire Saw Cutting Machine Pro has helped customers significantly improve production efficiency and cutting precision. Here are some successful cases:

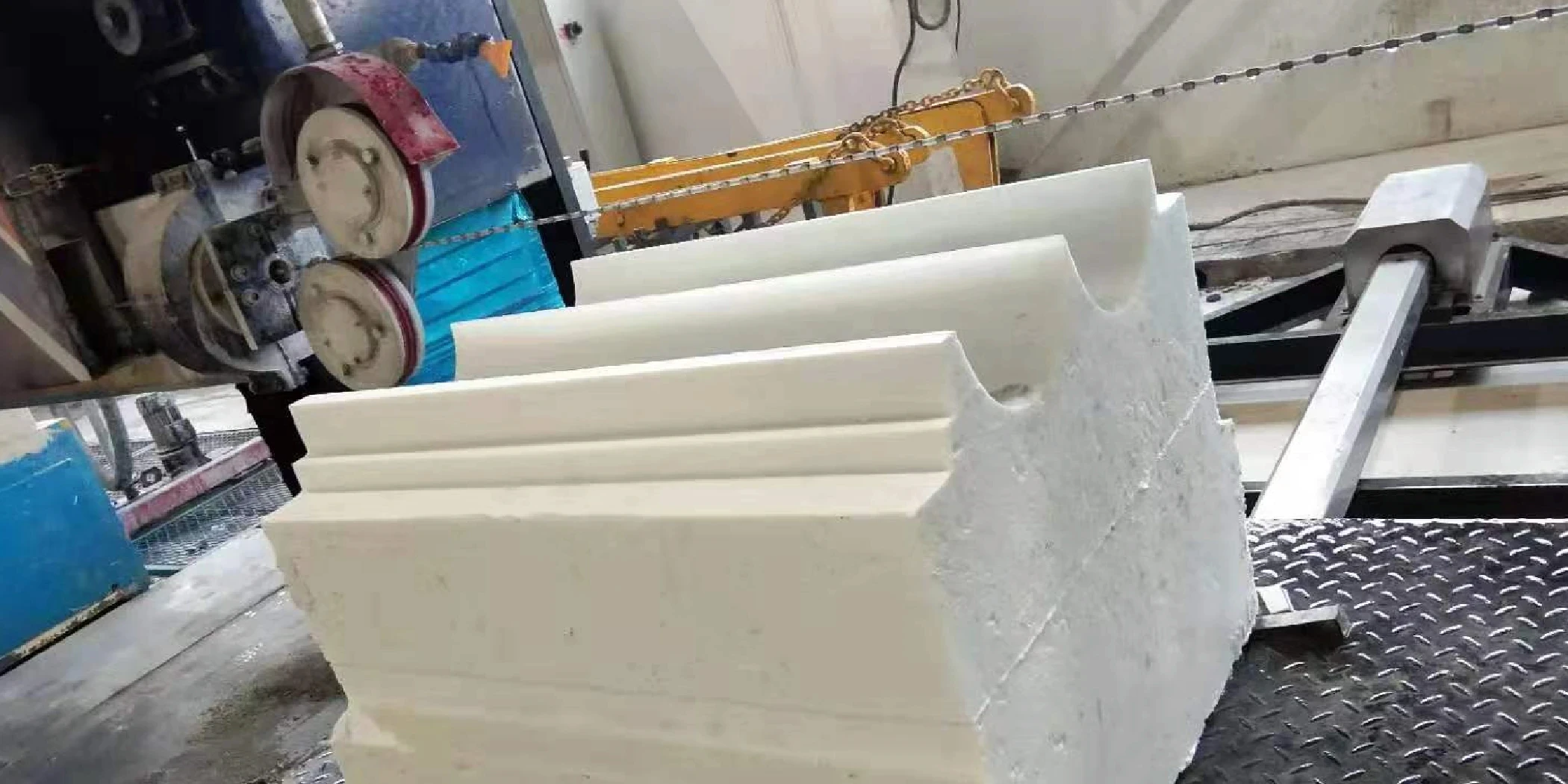

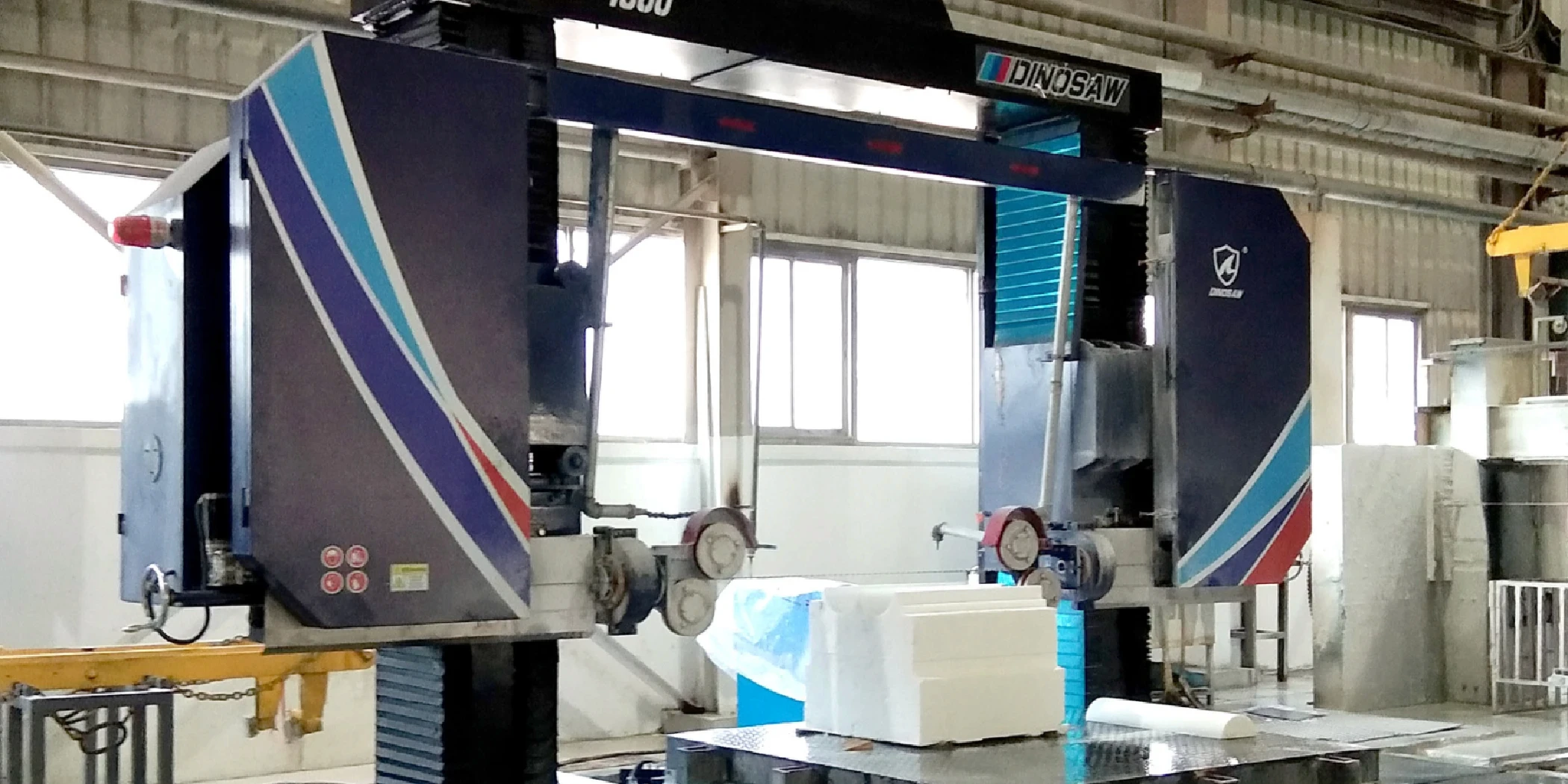

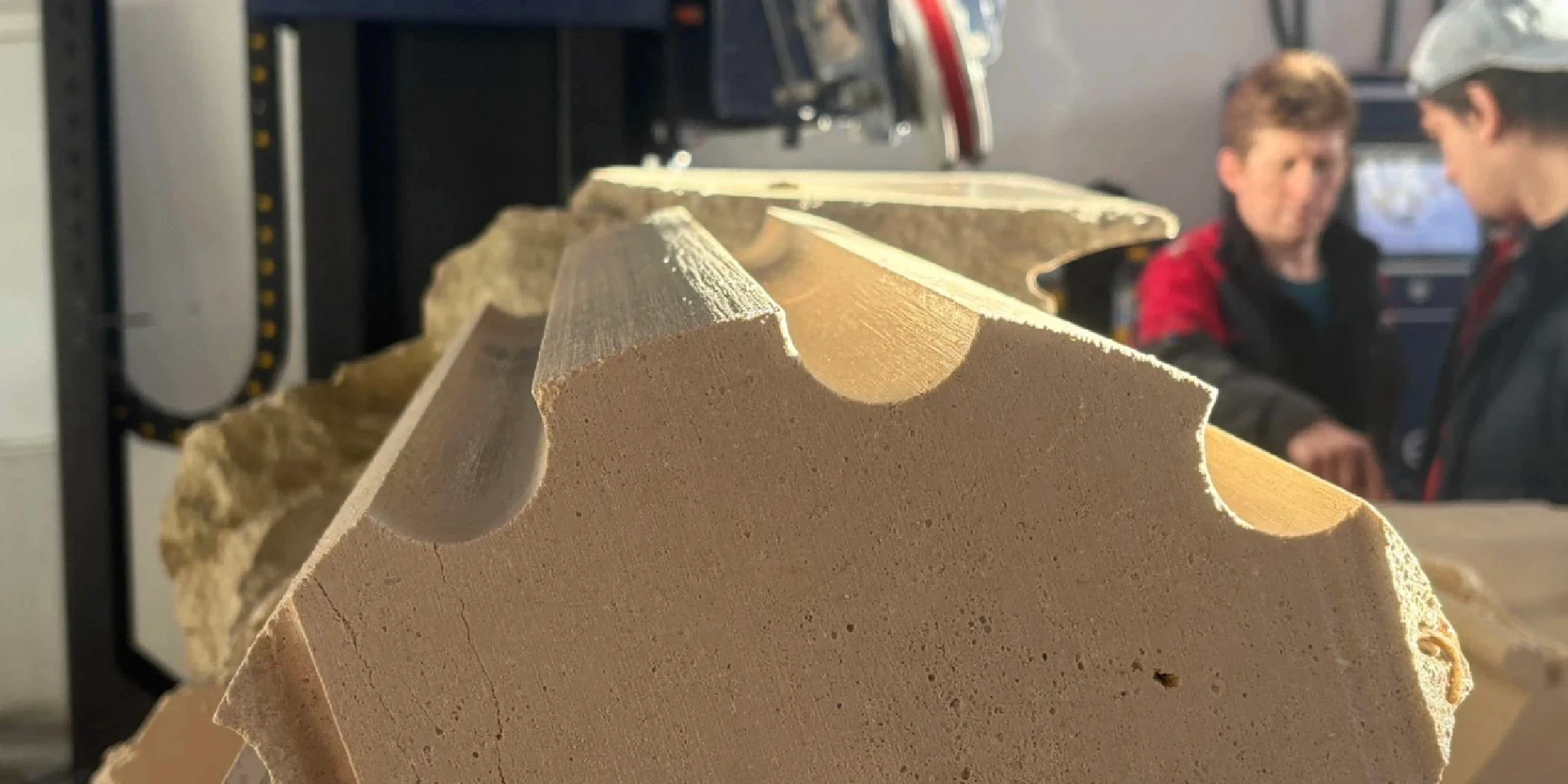

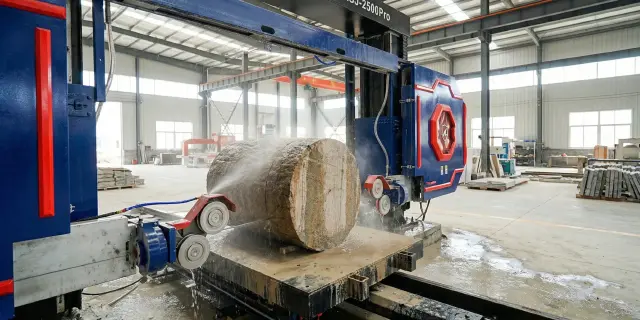

roman-column-production-case-cnc-foam-ceramic-wire-saw-supports-russian-factory

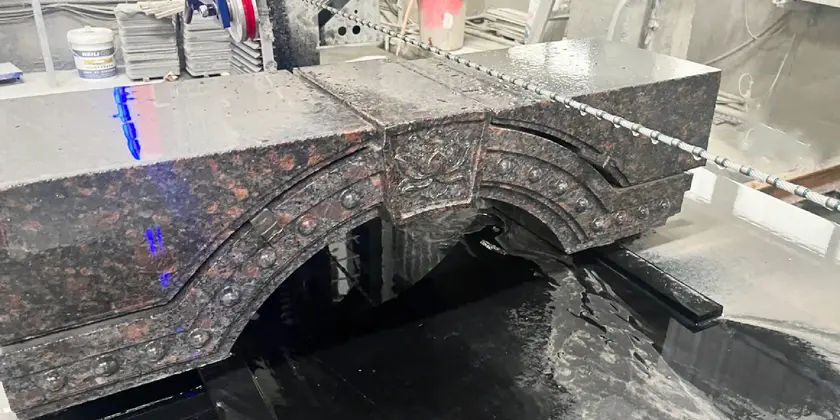

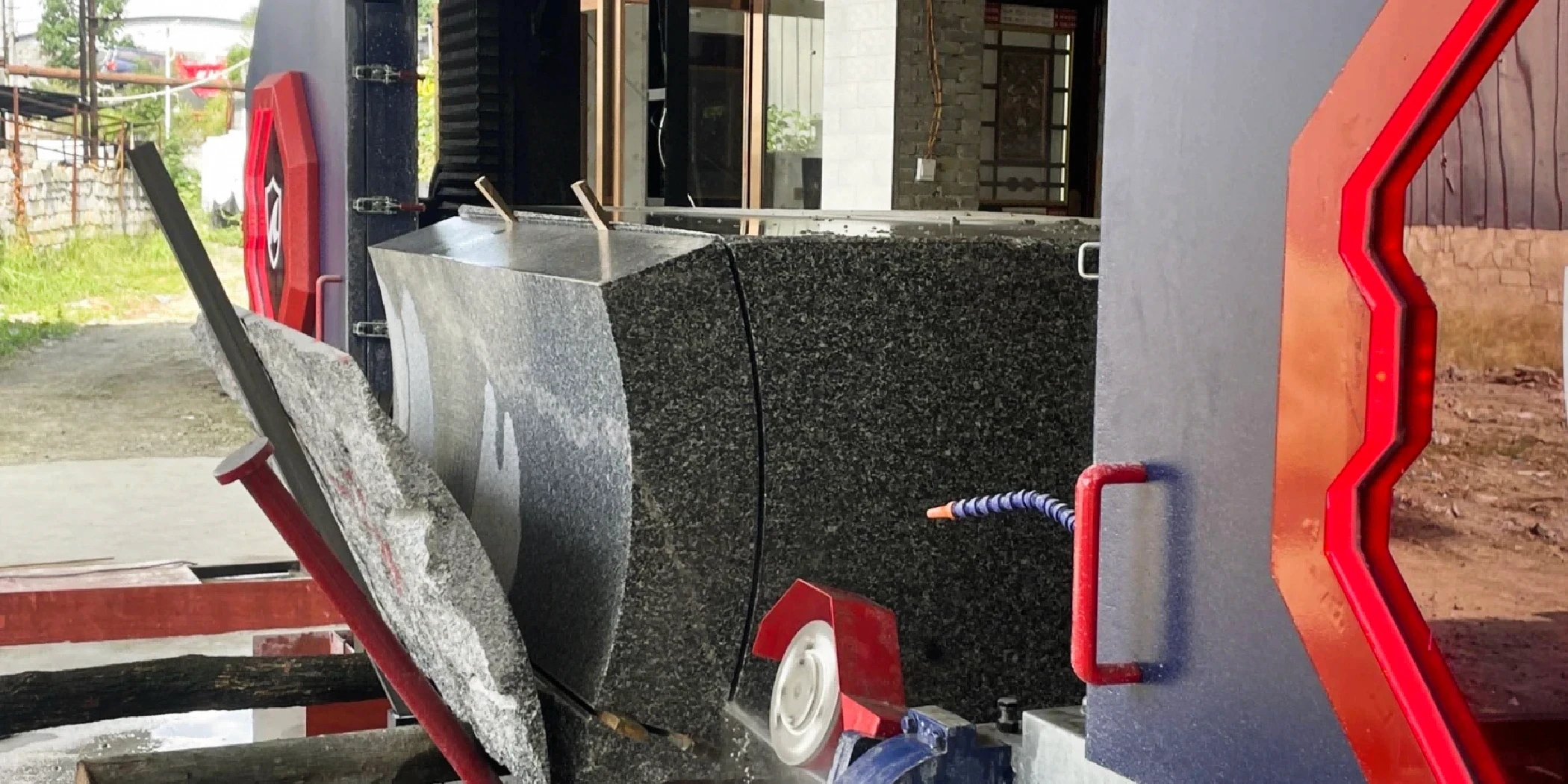

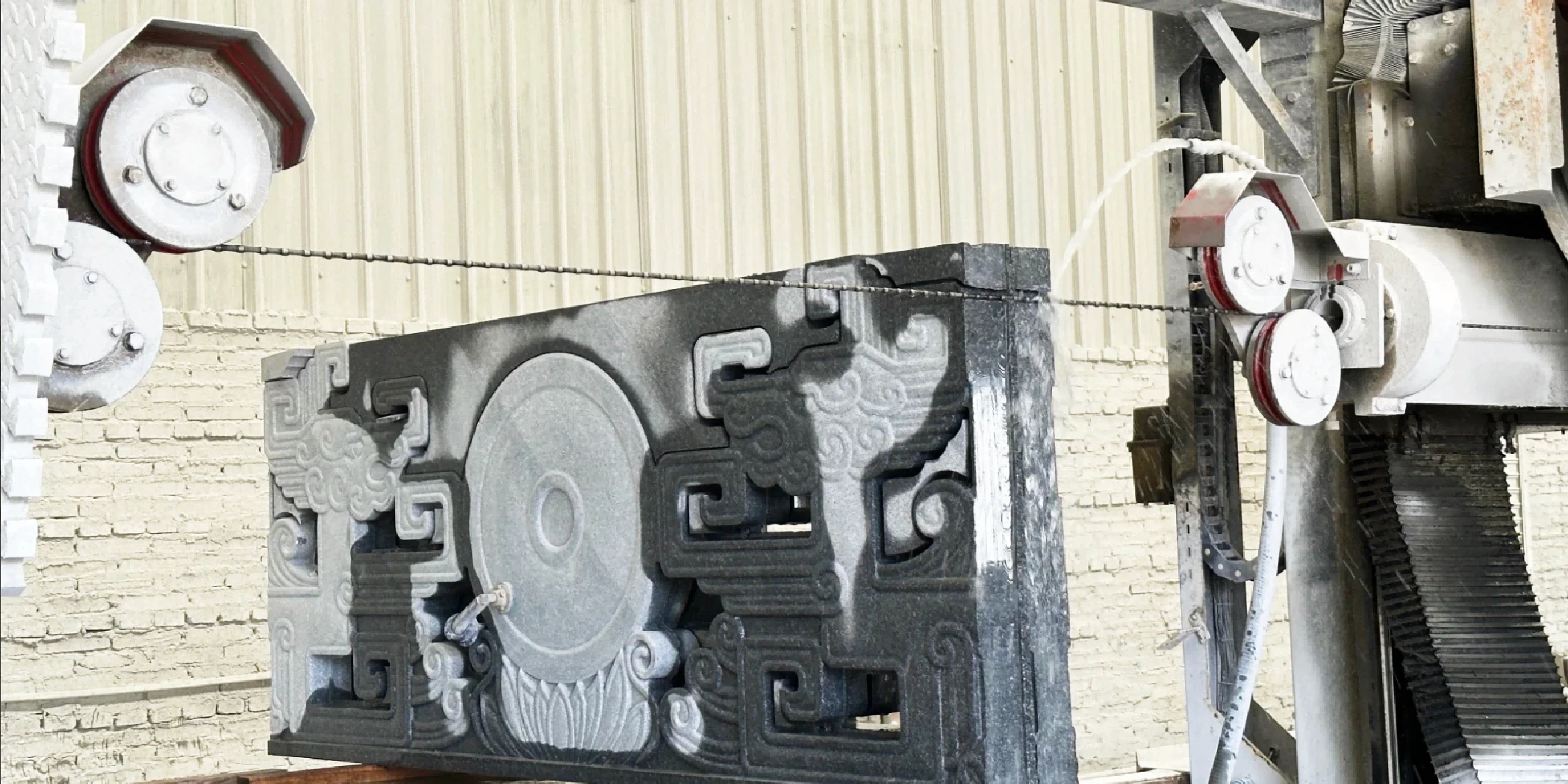

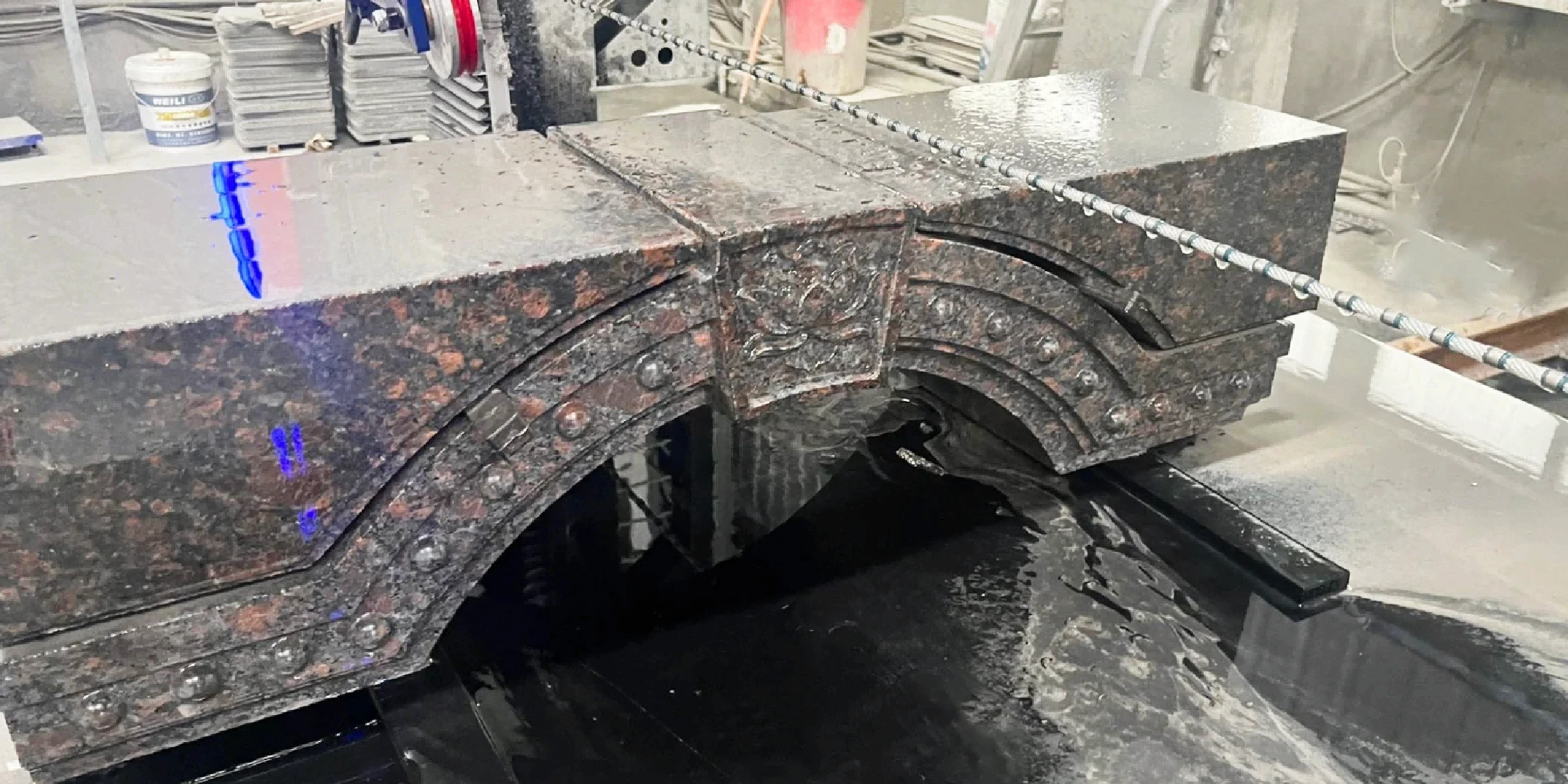

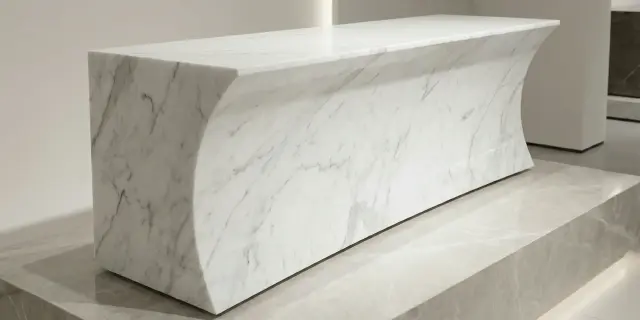

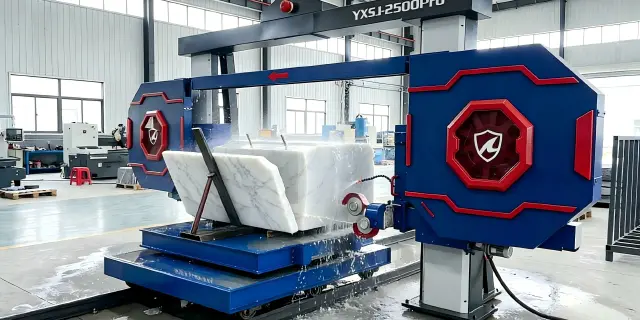

marble-shaped-cutting-case-cnc-wire-saw-machine-supports-brazilian-factory

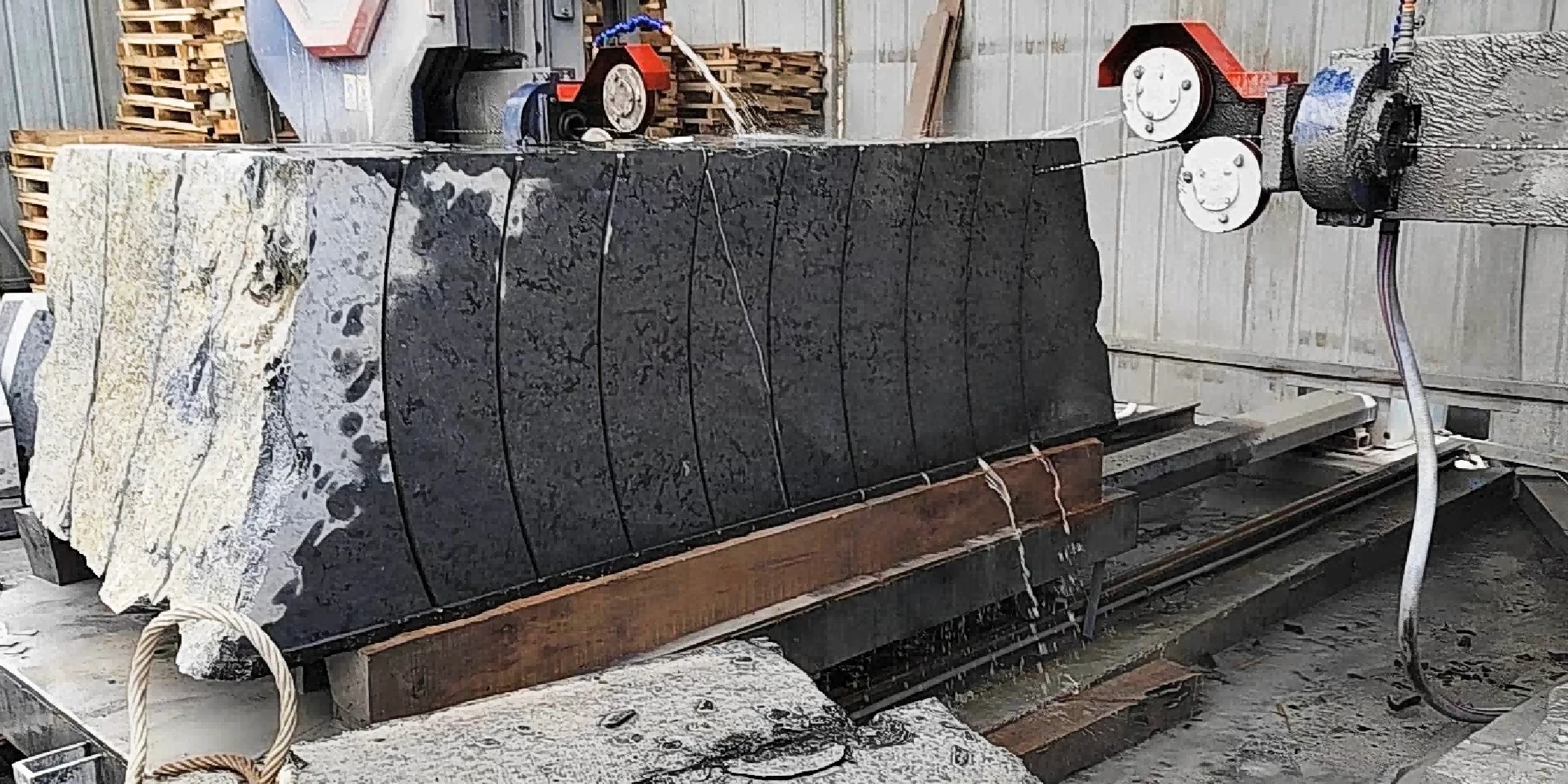

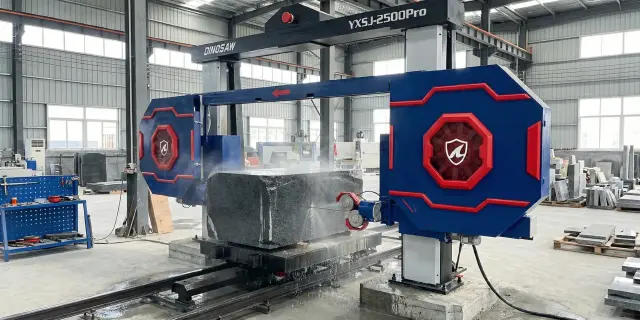

granite-mosaic-cutting-case-cnc-wire-saw-machine-supports-quanzhou-factory

FAQs for Diamond Wire Saw Cutting Machine

What types of materials is the Wire saw machine suitable for?

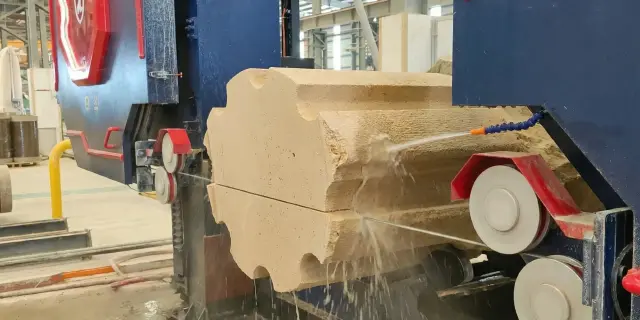

The Wire Saw Machine is suitable for a variety of materials, including marble, granite, limestone, sandstone, quartz, and other natural stones, as well as steel, concrete, ceramic, and graphite.

If you're unsure whether your material can be cut, you can reach out to DINOSAW for consultation or send samples for testing the cutting process.

How long does the diamond wire last?

50–100 operating hours, depending on material hardness. Our wires use 40% nickel-plated steel for 30% longer lifespan.

How is the CNC machine operated?

The operating system is very simple, no complex programming is needed, users can operate through the touch screen, usually completing the setting within 5 minutes.

What types of cutting can this equipment provide?

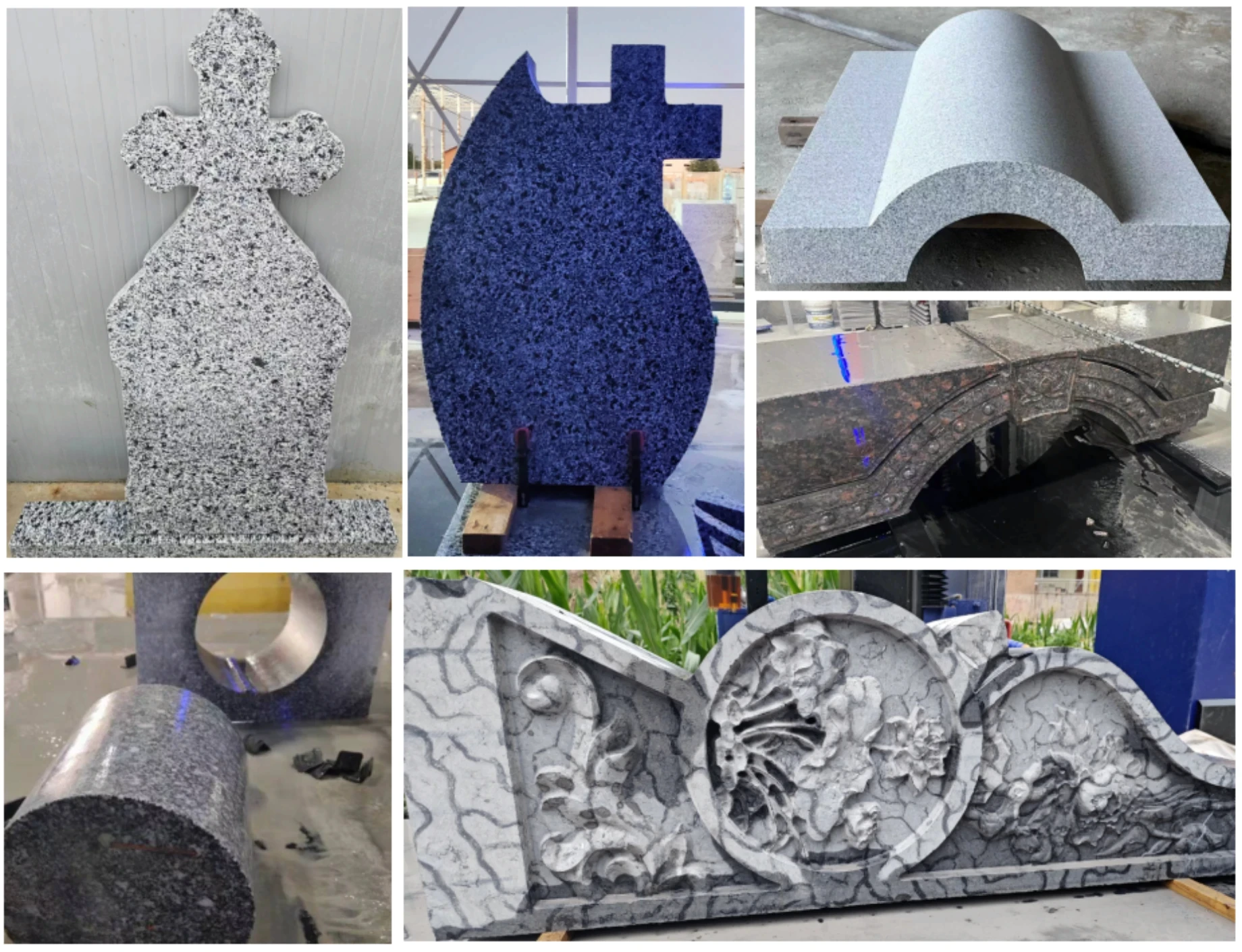

The equipment can perform straight cutting, curve cutting, irregular cutting, and various other cuttings.

How thick is the diamond wire?

Standard diameter: 11mm. Custom options (0.5–15mm) available.
