Abrasive water jet cutting explained in simple terms—what it is, how it works, where to use it and how to buy it.
Introduction
Are you searching for a cutting-edge solution to tackle tough materials or achieve precision cuts without damaging delicate surfaces? Whether you're in aerospace, manufacturing, or creative design, finding a versatile and eco-friendly cutting method is essential to meeting your goals.
Abrasive water jet cutting has become a go-to technology for industries requiring speed, accuracy, and flexibility. From slicing through thick steel plates to crafting intricate glass designs, this technology offers unmatched capabilities. But how does it work? What materials can it handle? And how can you choose the right machine or abrasive for your needs?
In this guide, you’ll discover the essentials of abrasive water jet cutting, explore its wide range of applications, and learn how it can transform your production processes. Whether you're a seasoned professional or new to this technology, this guide will provide the insights you need to make informed decisions.
What is Abrasive Water Jet Cutting?

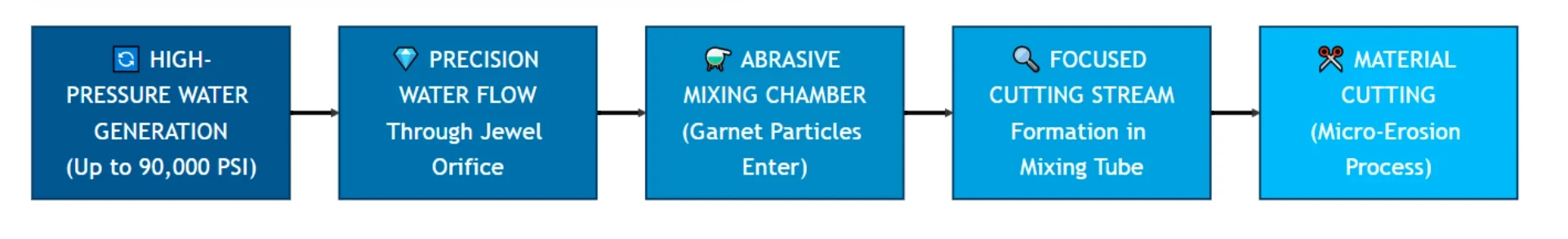

Abrasive water jet cutting is an advanced manufacturing technology that uses a high-pressure stream of water mixed with abrasive particles to cut through a wide range of materials. The process starts with water pressurized to levels as high as 6,000 bar, creating a jet that travels at incredible speeds. When combined with abrasives like garnet, the jet becomes a highly efficient tool capable of slicing through hard materials with precision.
Unlike pure water jet cutting, which relies solely on water to process soft materials, abrasive water jet cutting is designed for applications where greater cutting power is required. The abrasive particles increase the force of the water stream by adding friction and impact energy, allowing it to cut through materials like stainless steel, aluminum, granite, glass, and ceramics.
This cold-cutting process eliminates the risk of heat-affected zones, preserving the material's structural integrity and preventing thermal distortion. It is this unique combination of power, precision, and material safety that makes abrasive water jet cutting a critical tool in modern manufacturing.
Pure Water Jet Cutting vs. Abrasive Water Jet Cutting
Water jet cutting technology is divided into two main types: pure water jet cutting and abrasive water jet cutting. While both utilize high-pressure water streams, their applications and capabilities differ significantly due to the use of abrasives in the latter.
Pure water jet cutting relies solely on the power of water to cut materials. It is most effective for soft materials such as foam, rubber, paper, and certain food products. The absence of abrasives ensures a clean, precise cut without contamination, making it ideal for applications where hygiene or material softness is a priority. However, pure water jet cutting struggles with hard or dense materials due to its limited cutting force.
Abrasive water jet cutting, on the other hand, incorporates abrasive particles like garnet into the water stream. These particles drastically enhance the cutting power, allowing the system to process materials like metals, glass, ceramics, and composites with ease. While it requires more resources and maintenance due to the abrasives, it is the preferred method for tasks demanding greater power and precision.
The choice between pure water jet cutting and abrasive water jet cutting depends on the material, application, and desired outcome. By understanding these distinctions, businesses can select the technology best suited to their needs.
Types of Abrasive Water Jet Machining
Abrasive water jet machining can be categorized into two main types based on how abrasives are incorporated into the cutting process:
Abrasive Water Injector Jet (AWIJ): In this method, abrasives are added to the water stream after it exits the nozzle, along with air, to form a cutting mixture. AWIJ is versatile and widely used for general industrial applications due to its effectiveness and adaptability.
Abrasive Water Suspension Jet (AWSJ): Here, abrasives are pre-mixed with water to create a pressurized suspension. This method eliminates air from the cutting stream, resulting in a more focused jet and higher precision. AWSJ is often used for specialized tasks like underwater cutting or when extremely tight tolerances are required.
Both types cater to different needs, offering flexibility for a variety of cutting tasks based on material type, precision, and operational environment.
Advantages of Abrasive Water Jet Cutting
Abrasive water jet cutting has gained widespread adoption across industries due to its numerous advantages, making it a preferred choice for demanding manufacturing and fabrication tasks. Below are the key benefits of this cutting-edge technology:
Abrasive water jet cutting is a cold-cutting process, meaning it does not generate heat during operation. This eliminates heat-affected zones (HAZ) and preserves the original material properties, which is especially critical for heat-sensitive materials like tempered glass, composites, or metals with specific tempering requirements.
The technology offers exceptional precision, allowing manufacturers to achieve tight tolerances and intricate designs. Combined with a narrow kerf width, abrasive water jets ensure minimal material wastage and clean cuts with no secondary finishing required.
One of its standout features is its versatility. Abrasive water jet cutting can handle a wide range of materials, from soft composites to dense metals, ceramics, and stone. This adaptability makes it suitable for applications in aerospace, automotive, medical, and construction industries.
Environmentally, abrasive water jet cutting is eco-friendly, generating minimal waste and using recyclable abrasives like garnet. Additionally, it produces no harmful fumes or gases, creating a safer workplace for operators.
Lastly, the technology is known for its efficiency. High cutting speeds, energy savings compared to thermal methods, and multi-axis capabilities combine to optimize production workflows and reduce costs over time.
The Role of Abrasives in Water Jet Cutting
Abrasives are a critical component of abrasive water jet cutting, significantly enhancing the cutting power and efficiency of the process. By introducing abrasive particles into the high-pressure water stream, the cutting jet gains the necessary force to tackle hard and thick materials with precision.

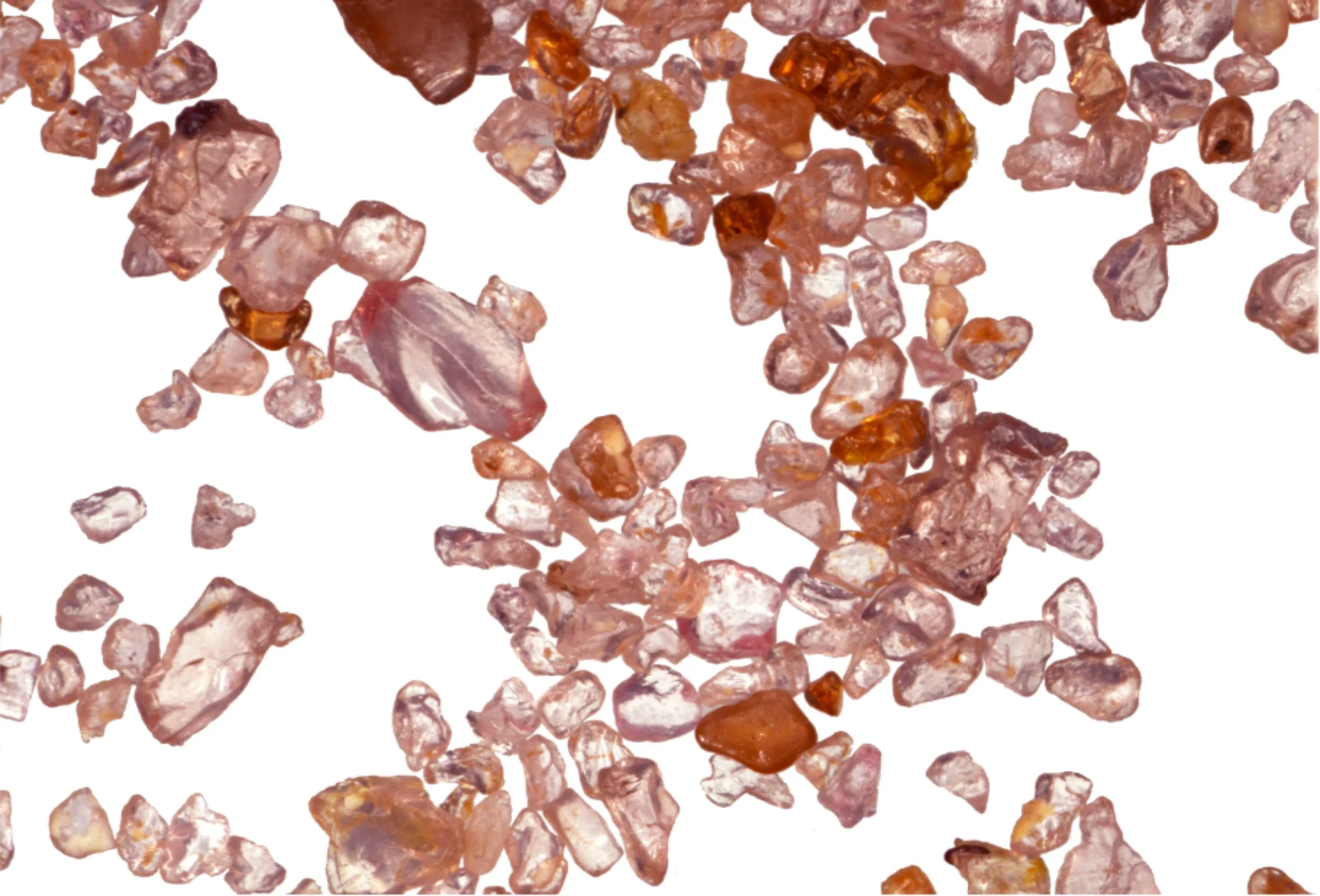

Common Types of Abrasives
The most widely used abrasive is garnet, valued for its ideal hardness, sharp edges, and recyclability. Garnet provides a balance between cutting speed and edge quality while minimizing wear on cutting equipment. Other abrasives like aluminum oxide and silicon carbide are harder but less common due to increased equipment wear and cost. Softer abrasives, such as olivine or glass beads, are less effective for dense materials but may be used for specific applications requiring less aggressive cutting.
How Abrasives Enhance Cutting

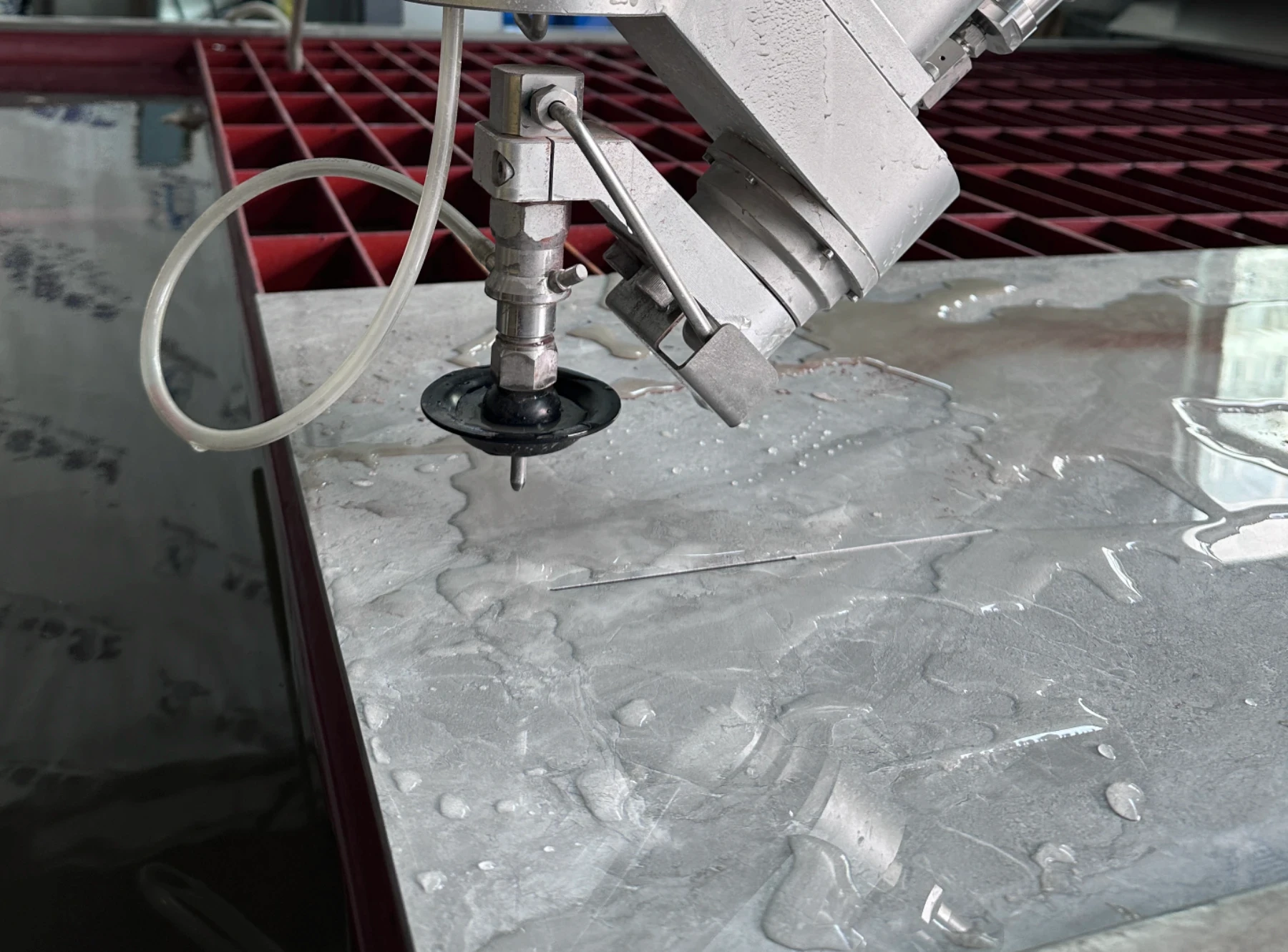

Abrasive particles increase the friction and impact force of the water jet, enabling it to slice through materials like stainless steel, granite, ceramics, and composites. The selection of abrasive type and particle size depends on the material being cut and the desired cutting precision.
Environmental and Economic Considerations
High-quality abrasives like garnet can be recycled multiple times, reducing waste and lowering operational costs. Additionally, their use aligns with eco-friendly manufacturing practices, as garnet abrasives produce minimal dust and are free from hazardous substances.
By choosing the right abrasives and maintaining consistent flow, manufacturers can achieve superior cutting results, longer equipment life, and greater cost efficiency.
Applications of Abrasive Water Jet Cutting
Abrasive water jet cutting is a versatile technology that finds applications across a wide range of industries, thanks to its ability to handle diverse materials and deliver precise results. Below are some key sectors where this technology plays a pivotal role:
Aerospace: Used for cutting critical components like fuselage panels, wing spars, and titanium parts where precision and material integrity are paramount.
Automotive Manufacturing: Ideal for fabricating both metallic and non-metallic parts, such as engine components, interior trims, and structural panels.
Medical Equipment: Employed in the production of surgical tools, implants, and prosthetics, ensuring hygiene and accuracy.

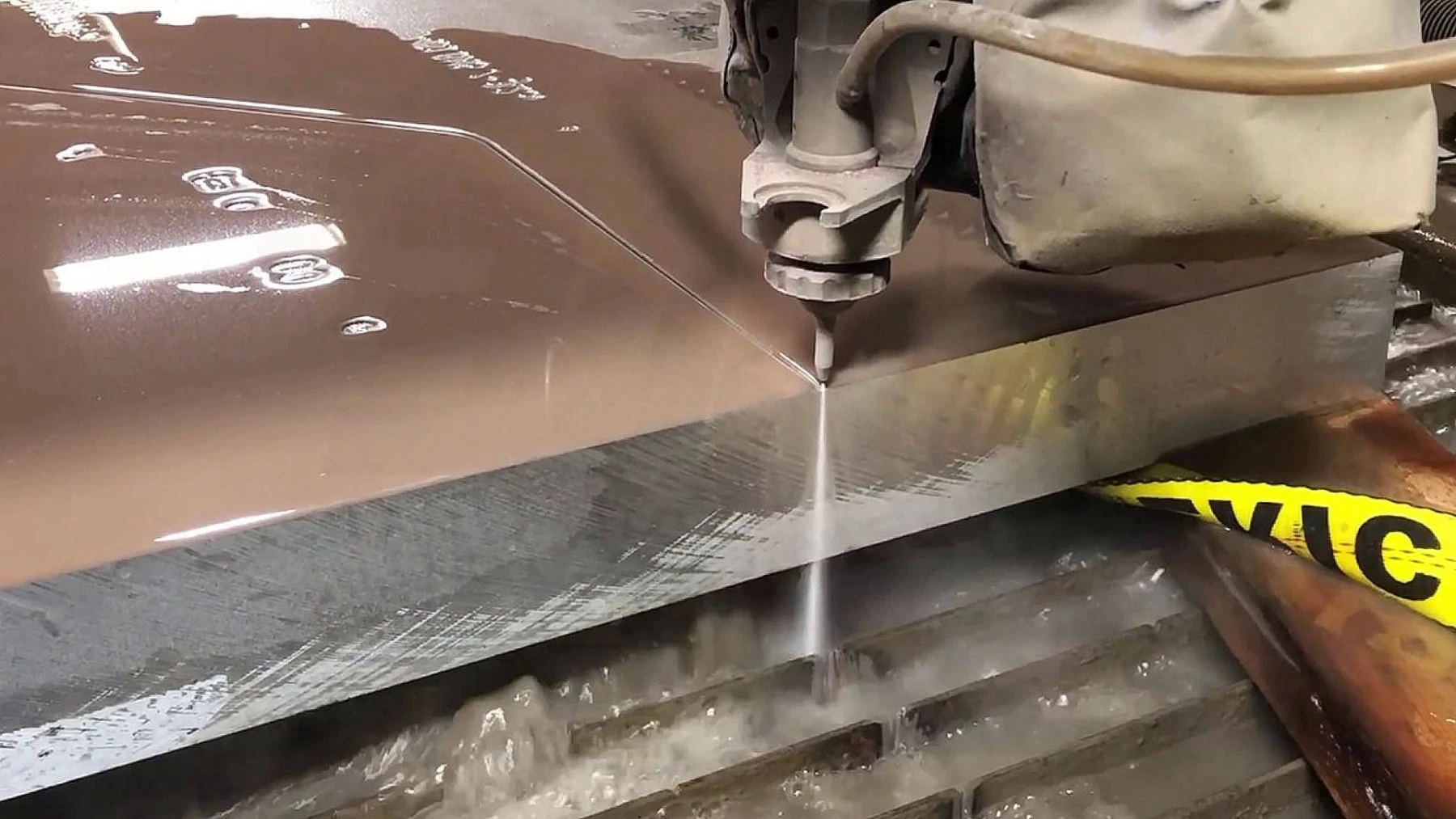

Construction and Architecture: Commonly used for intricate cutting of granite, marble, glass, and decorative metals in architectural designs.
Electronics: Precision cutting of silicon wafers, printed circuit boards, and delicate components for electronic devices.
Defense Industry: Fabrication of Kevlar armor, steel reinforcements, and other military-grade equipment.
Metal Fabrication: From cutting complex shapes to making precise holes, it is a go-to solution for metalworking industries.
Art and Design: Artists and designers use abrasive water jets to create intricate patterns on various materials like glass and stone.
Abrasive water jet cutting’s flexibility and efficiency make it indispensable for industries that require high precision, versatility, and environmental responsibility.
Challenges and Limitations of Abrasive Water Jet Cutting
While abrasive water jet cutting offers numerous advantages, it also comes with certain challenges and limitations that manufacturers should consider when implementing this technology.
High Initial Investment
The cost of purchasing and installing an abrasive water jet cutting system can be significant, particularly for machines equipped with advanced features such as multi-axis cutting or ultra-high-pressure pumps. This may be a barrier for smaller operations or businesses with limited budgets.
Ongoing Maintenance Requirements
Abrasive water jet systems require regular maintenance to ensure optimal performance. Components like nozzles, mixing tubes, and high-pressure pumps are subject to wear and need periodic replacement. The abrasives themselves must be managed carefully to prevent clogging or inconsistent flow.
Dependence on Abrasive Quality
The cutting performance and efficiency of the system heavily rely on the quality and consistency of the abrasives used. Low-grade abrasives can lead to uneven cuts, increased equipment wear, and higher operational costs.
Slower Cutting Speeds for Certain Materials
Compared to methods like laser or plasma cutting, abrasive water jet cutting may be slower when processing thin or soft materials, making it less suitable for high-volume production of such items.
Waste Management
Although garnet and other high-quality abrasives are recyclable, the process of collecting, cleaning, and reusing them can add complexity and cost. Proper disposal of spent abrasives is also essential to comply with environmental regulations.
Despite these challenges, the versatility, precision, and eco-friendly nature of abrasive water jet cutting often outweigh its limitations, making it a valuable tool for many industries.
Where Can I Buy Abrasive Water Jet Machines and Abrasives?
If you’re considering investing in abrasive water jet cutting technology, choosing the right supplier is crucial to ensure optimal performance and long-term value. Here’s a guide to help you find reliable sources for machines and abrasives:
Leading Manufacturers of Abrasive Water Jet Machines

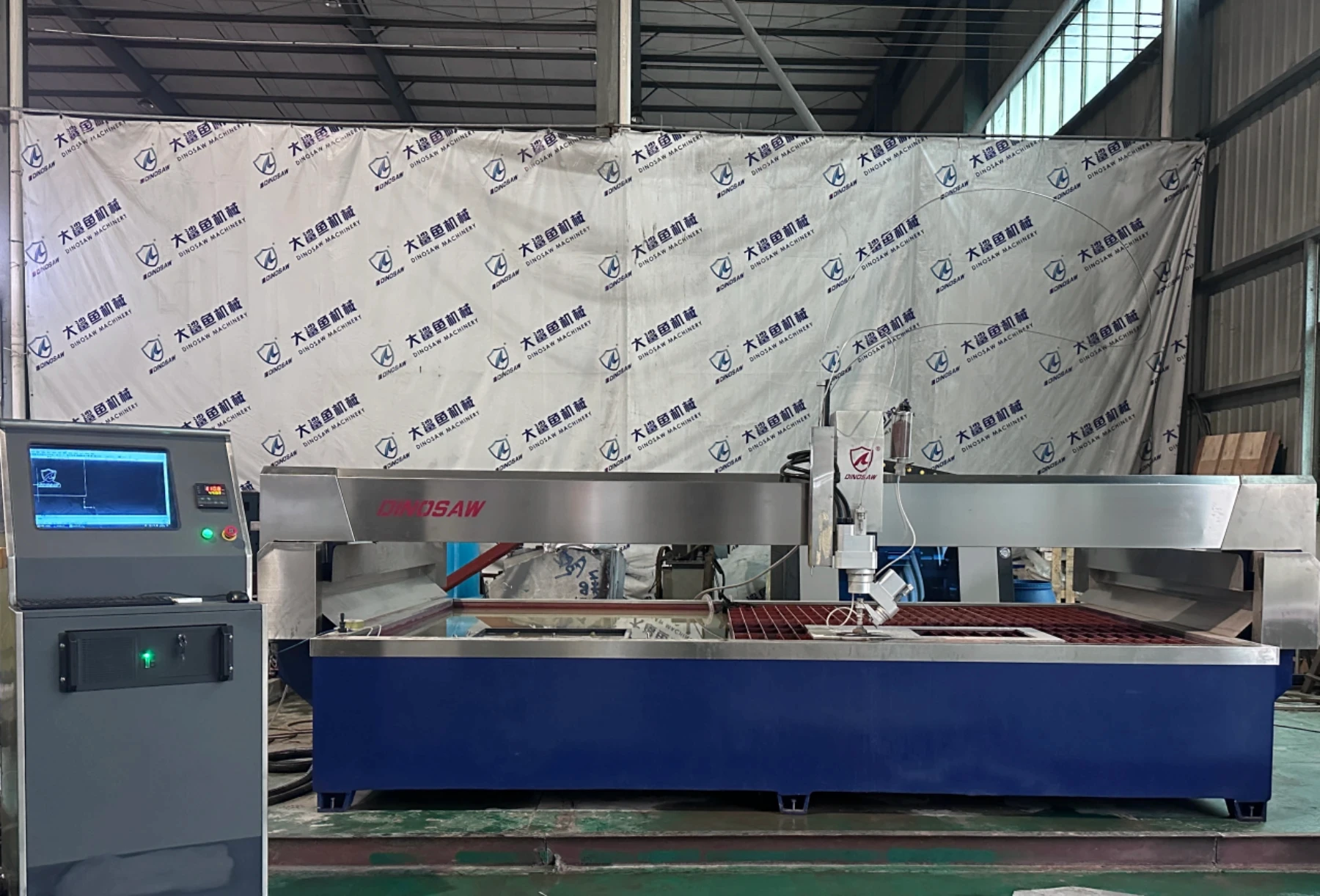

One of the top manufacturers in the industry is DINOSAW, known for its high-quality abrasive water jet cutting systems. DINOSAW offers a wide range of advanced machines equipped with features like multi-axis cutting, ultra-high-pressure pumps, and precision nozzles. Their machines are designed for various industrial applications, providing reliable performance and robust after-sales support.
Best Sources for Abrasives
When it comes to abrasives, GMA Garnet™ is a widely recommended choice due to its consistent quality, recyclability, and superior cutting performance. Depending on your cutting needs, you can also explore other options like aluminum oxide, silicon carbide, or olivine from reputable abrasive suppliers.
Factors to Consider When Choosing a Supplier
Reputation: Research reviews and case studies or seek recommendations from industry peers.
Product Range: Ensure the supplier provides machines, spare parts, or abrasives tailored to your needs.
Support Services: Look for suppliers that offer training, technical support, and regular maintenance services.
Delivery and Logistics: Evaluate shipping options, lead times, and any relevant import regulations for international purchases.
Tips for Buying Locally and Internationally
Local suppliers may offer faster delivery and better access to spare parts.
International brands like DINOSAW often provide cutting-edge technology and a broader product range, but verify that warranties and service networks are available in your region.
Investing in a reliable abrasive water jet system and high-quality abrasives ensures consistent performance, longer equipment life, and better cutting results, making it a critical decision for manufacturing success.
Conclusion
Abrasive water jet cutting is a versatile, precise, and eco-friendly technology that has become essential across industries. Its ability to handle diverse materials without heat damage makes it a reliable solution for modern manufacturing needs. By choosing quality equipment from trusted manufacturers like DINOSAW and using premium abrasives such as GMA Garnet™, businesses can achieve superior results and stay competitive in their fields.
FAQs
1. What materials can abrasive water jet cutting handle?
Abrasive water jet cutting can process a wide range of materials, including metals (steel, aluminum, titanium), stone (marble, granite), glass, ceramics, composites (carbon fiber, fiberglass), and more.
2. How does abrasive water jet cutting differ from pure water jet cutting?
Pure water jet cutting uses only high-pressure water and is ideal for soft materials like foam, rubber, and food products. Abrasive water jet cutting incorporates abrasive particles like garnet, enabling it to cut harder and thicker materials with precision.
3. Why is garnet the most popular abrasive for water jet cutting?
Garnet is preferred for its optimal hardness, sharp edges, and recyclability. It offers a balance of cutting speed, edge quality, and low wear on equipment, making it cost-effective and efficient.
4. Is abrasive water jet cutting environmentally friendly?
Yes, it is an eco-friendly process that generates minimal waste, uses recyclable abrasives, and produces no harmful emissions or heat-affected zones.
5. What should I consider when buying an abrasive water jet machine?
Key factors include the machine’s capabilities (e.g., multi-axis cutting), the quality and availability of abrasives, after-sales support, and the reputation of the manufacturer, such as DINOSAW.
